TPS2559: Short Circuit Fast Trip Threshold

user4487274

Part Number: TPS2559

Tool/software:

Hi TI team,

Please tell me "Short Circuit Fast Trip Threshold" of TPS2559.
I would like to know the current value at which the IC detects a short circuit and stops output.

Katsuhiro Uchida

2 months ago

0 Chuck Branch 2 months ago

TI__Mastermind 32501 points

Katsuhiro,

The current is defined as 120% of IOS which is set by the RILIM resistor

Regards,

Chuck

0 user4487274 2 months ago in reply to Chuck Branch

Prodigy 175 points

Hi Chunk-san,

Thank you for your reply.

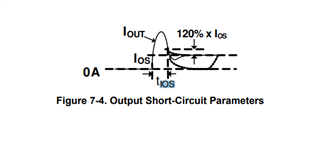

Does it mean that TPS2559 turns off VOUT when 120% x IOS
continues more than 3.5us since the current load reach IOS?

Regards,
Katsuhiro Uchida

0 Chuck Branch 2 months ago in reply to user4487274

TI__Mastermind 32501 points

Katsuhiro-san,

The 3.5uS is the typical value is is not datasheet guaranteed. It will vary with temperature, voltage and part to part, but that is the target setting.
