UCC34141-Q1: UCC34141 stack output

Eddie Chou

Expert 6180 points

Part Number: UCC34141-Q1
Other Parts Discussed in Thread: UCC34141

Tool/software:

Hi Team,

Our customer is looking for isolated module with > +30V output, we find UCC34141 output range is 15V ~ 20V.

Customer would like to confirm if they can steak two UCC34141 >30V output? can we provide reference circuit?

Thanks & Regards

Eddie

2 months ago

0 Manuel Alva Hernandez 2 months ago

TI__Genius 15496 points

Hi Eddie,

The engineer expert on this device will come back on 07/07 and he will reach out to you with this.

Regards

0 Eddie Chou 2 months ago in reply to Manuel Alva Hernandez

TI__Expert 6180 points

Hi Manuel,

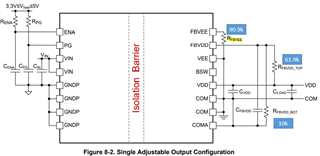

Do we have UCC34141 calculator support for customer design. they would like you Single output steak to support > 30V output.

Also, for single output will RFBVEE input to output range?

Thanks

Eddie

0 Manuel Alva Hernandez 2 months ago in reply to Eddie Chou

TI__Genius 15496 points

Hi Eddie,

The respective engineer will help you on that. He will come back on 07/07 and he will reach out to you with this

Regards

0 Steven Mappus1 2 months ago in reply to Eddie Chou

TI__Mastermind 32825 points

Eddie,

Hopefully you have found, with very little effort, that the UCC34141 Excel Design Tool is available on TI.com in the UCC34141 product folder. Also, all IIB modules, operating as single output, can be stacked to increase the total output voltage.

Steve
