TPS16630-32EVM: It is necessary to connect the NC pins to GND?

sun qiyun

Part Number: TPS16630-32EVM

Tool/software:

Dear

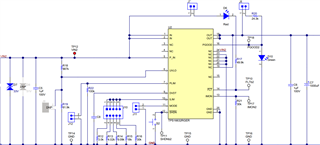

I have a question about the NC pins in EVM. tps16632RGER datasheet shows the NC pins(3,4,15,19,20,21,22,23,24) are not connected. But in the EVM, I find the pin 3 and pin4 are float, pin 19~23 are connected to GND, pin 24 is connected to VIN.

Could you please help explain why it connected like this? If all of the NC pins are float, is there any issue?

Hope I can receive your answer soon. Thanks!

2 months ago

0 Amrit Jit 2 months ago

TI__Mastermind 31401 points

Hello Sun,

NC pins can be left floating or connected to GND.

It's provided to accommodate other similar IC on same EVM.

Thanks

Amrit

0 sun qiyun 2 months ago in reply to Amrit Jit

Intellectual 280 points

Hi, Amrit

thanks for your reply.

Do these NC pins connected to GND have better heat release performance?

+1 Amrit Jit 2 months ago in reply to sun qiyun

TI__Mastermind 31401 points

Hello Sun,

Larger GND area around eFuse will show better thermal performance. So, if you connect NC to GND which means bigger GND plane.

Electrically NC pins are not connected to anywhere inside IC

Thanks

Amrit
