TPS2H160-Q1: About trace to the board GND copper

Leo Ma

Expert 3716 points

Part Number: TPS2H160-Q1
Other Parts Discussed in Thread: TPS4H160-Q1

Tool/software:

Hi Expert,

Have a nice day!

For TPS2H160-Q1, “With a GND network, tie the thermal pad as one trace to the board GND copper.”

My questions:

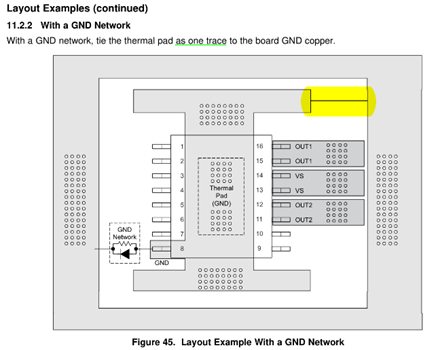

Is the trace as shown the yellow part? What is the function of this trace?

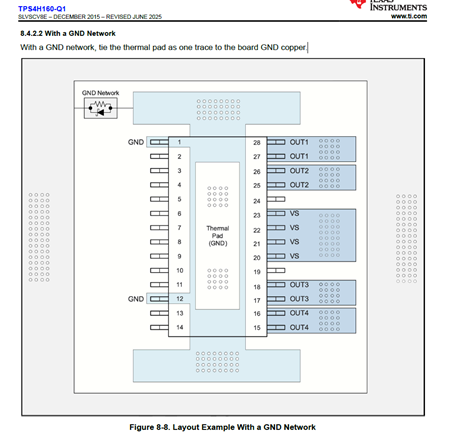

Why TPS4H160-Q1 doesn’t have this trace?

Thanks!

Best Regards,

Leo Ma

2 months ago

+1 Nicholas Petersilge 2 months ago

TI__Intellectual 2850 points

Hi Leo,

the highlighted section of the layout is not a connection. The only connection between the device ground and module ground is through the ground network.

the statement about one trace is talking about connecting all of the ground network connections together in one trace to be able to better dissipate energy.

Best regards,

Nicholas

0 Leo Ma 2 months ago in reply to Nicholas Petersilge

TI__Expert 3716 points

Thanks!
