LM2937: LM2937ESX-2.5 data code and marking information

Part Number: LM2937

Tool/software:

Hello! We found a chip from National Semiconductor in our warehouse. Could you help us find out its production date?
We would also like to clarify whether its part number LM2937ESX-2.5 is correct? Does the suffix "X" indicate the type of packaging?

  • Hi Jack,

    ESX refers to the KTT (DDPAK/TO-263) package, same as the ES suffix. LM2937ESX-2.5/NOPB is likely the full part number. It seems like it's an obsolete part, are you able to provide a photo of it? (The part, topside markings, any sticker on the package or bag if it's in one, etc)

    Best,

    Gregory Thompson

  • Hi Gregory,

    Photo of the chip below. Could you please help me decipher the datacode?

    Best Regards,

    Jack Barret

  • Hi Jack,

    For some reason the image will not load. Could you email it to me at g-thompson@ti.com? I should be able to pull the production date off the topside markings.

    Further clarification on the nomenclature:

    The ES means it's the KTT (DDPAK/TO-263) package, and X means it came in a tape & reel instead of a tube. The part itself is the same as the LM2937ES-2.5.

    Best,

    Gregory Thompson

  • Hi Gregory
    Yes, of course. Thank you for your help.

    Best Regards,

    Jack Barret


  •  Hi Jack,

    Thank you for the email. Copying my response here as well, feel free to respond via either.

    The device appears to be from 2005, manufactured somewhere between late July and early September of that year. This would be prior to TI’s acquisition of National Semiconductor (from whom we acquired the part). The parts I found made with the same “LM2937ES-2.5” P/N in our systems post-acquisition (circa ~2011) use a different first line marking convention.

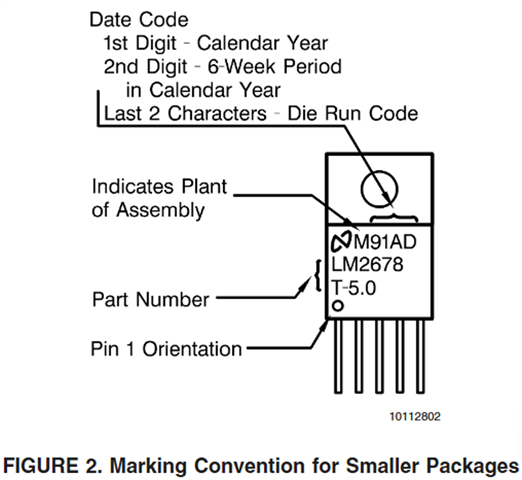

    National Semiconductor used the first digit for the date’s least significant digit, and the second to index a 6 week periods of time, more info below: Device Marking Conventions | National Semiconductor.

    However, the chip with that marking could have been shipped under part numbers:

    • Suffixed by ES or ESX, which determines whether it is shipped in a reel or tube (ESX = larger reel)
    • Suffixed by /NOPB or not, which determines whether the part is leaded (NOPB = No Lead)

    There is no good way to determine that on this legacy device from the information I have, but they should all be electrically identical.

    May I ask where the LM2937ESX-2.5 part number came from? And what/how critical is the concern on manufacturing date for this part?

    Best,

    Gregory Thompson
