LM4040-N: ESD data for the new die

Hirotsugu Kobayashi

Mastermind 9540 points

Part Number: LM4040-N

Tool/software:

Hi team,

We have received the following comment.

>We passed 1KV, we are now putting on the datasheet the minimum AECQ/JEDEC requirement.

Could you please provide us with the test results that show that the new die can withstand 1kV?

2 months ago

0 Masoud Beheshti61 2 months ago

TI__Mastermind 18061 points

Hello,

If you have a recived a PCN, this data is alrerady included. If you have not please kindly contact your TI local sales team. Thanks.

0 Hirotsugu Kobayashi 2 months ago in reply to Masoud Beheshti61

Mastermind 9540 points

Hi Masoud,

The CDM was changed from 1kV to 500V in the PCN, but we received a reply that it still has the capability of 1kV, so please disclose the test data that passes that 1kV.

0 Masoud Beheshti61 2 months ago in reply to Hirotsugu Kobayashi

TI__Mastermind 18061 points

Hello,

All ESD data are included in the PCN document. I do not have any addtional information to share. Please contact me by email if you have any questions. Thank.

0 Hirotsugu Kobayashi 2 months ago in reply to Masoud Beheshti61

Mastermind 9540 points

Hi Masoud,

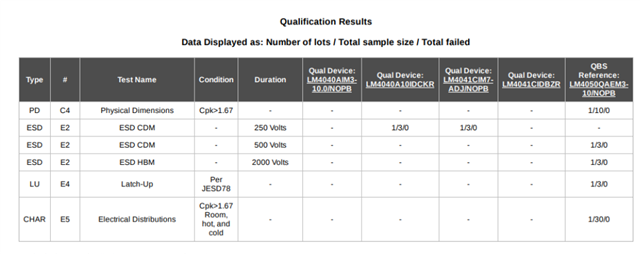

I have attached a portion of the PCN.

Does this mean that the ESD CDM has passed 500V?

+1 Hirotsugu Kobayashi 1 month ago in reply to Hirotsugu Kobayashi

Mastermind 9540 points

I have sent you an email so please respond.
