LP2981A: Interpreting the LP2981-N datasheet Revised February 2025

Dan Parker

Part Number: LP2981A

Tool/software:

We have a part, LP2981AIM5-5.0, with a date code 2151 in the SOT-23-5 package.

In the datasheet, there are references to A-grade legacy chip, standard-grade legacy chip and new chip. What chip should i reference (A-grade, standard legacy or new)?

1 month ago

0 Daniel Esparza 1 month ago

TI__Expert 3805 points

Hello Dan,

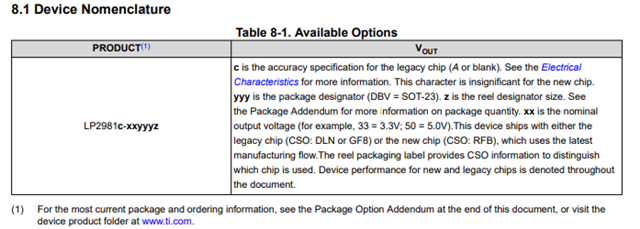

Please refer to section 8.1 in the datasheet:

Regards,

Daniel

0 Dan Parker 1 month ago

Prodigy 120 points

So if my part is an LP2981A, that means A-Grade? Or does it mean standard-grade?

0 Daniel Esparza 1 month ago in reply to Dan Parker

TI__Expert 3805 points

Hello Dan,

Yes, your device is an A-grade regulator.

Regards,

Daniel

0 Dan Parker 1 month ago in reply to Daniel Esparza

Prodigy 120 points

Thank you very much for your assistance. We are investigating a preconditioning temperature cycling profile for this part and were also wondering if exposure to the maximum and minimum storage temperatures (-65C to +150C) could cause Vout fluctuations beyond the datasheet specification of +/- 0.75%. This would be unbiased (unpowered) testing. we are trying to precondition parts but not induce damage. If this is not acceptable, what would an acceptable unbiased temperature cycling range be?

0 Daniel Esparza 1 month ago in reply to Dan Parker

TI__Expert 3805 points

Hello Dan,

You can find the qualification summary and their associated stress conditions performed on a small set of devices, prior to product launch, at the following link:

https://www.ti.com/quality-reliability-packaging-download/report?opn=LP2981A-50DBVT

Regards,

Daniel

0 Daniel Esparza 1 month ago in reply to Daniel Esparza

TI__Expert 3805 points

Hello Dan,

We highly recommend to isolate pin 4 and not be connected as specified in table 4-1 Pin functions. This pin can be sensitive to noise coupling thru traces or vias and must be isolated.

Regards,

Daniel

0 Dan Parker 1 month ago in reply to Daniel Esparza

Prodigy 120 points

If the temperature preconditioning is performed unbiased / unpowered, should pin 4 still be isolated?

0 Daniel Esparza 1 month ago in reply to Dan Parker

TI__Expert 3805 points

Hello Dan,

If the device is not powered, there is no need to isolate pin 4. Only when the device is operational, pin 4 must be isolated from external signals and from any noise coupled thru EMI.

Regards,

Daniel
