TPS1685: Mechanical drawing

TPS1685: Footprint/symbol misalignment

Mattia Berlucchi
Prodigy 10 points
Part Number: TPS1685

Tool/software:

Hi,

the footprint and symbol in Ultra Librarian seem to be different from the datasheet, please see images below.

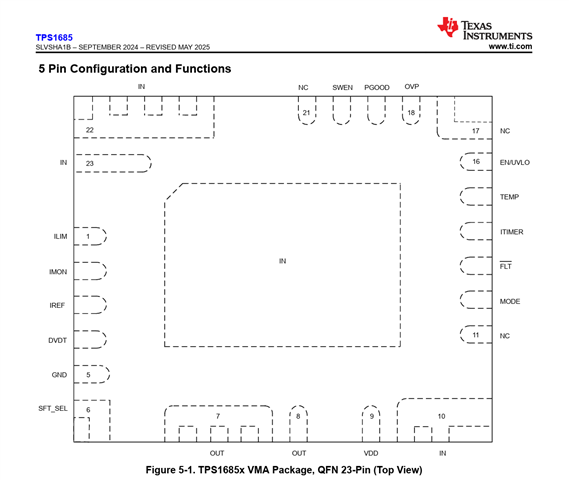

Datasheet page:

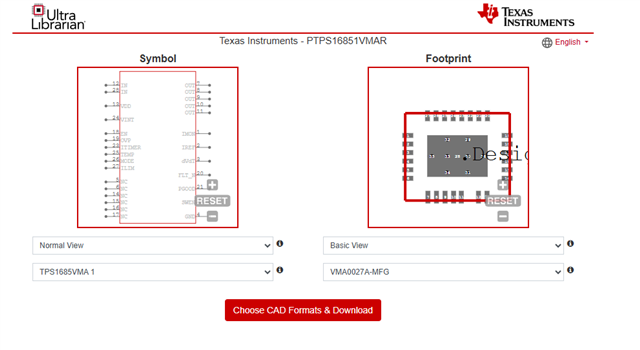

Ultra Librarian:
