TPS6593-Q1: Fail-safe GPIO pins

Shuji Ishiwata

Mastermind 7845 points

Part Number: TPS6593-Q1
Other Parts Discussed in Thread: SK-AM62A-LP,

Tool/software:

Hi All,

I have a question about the TPS65931211.

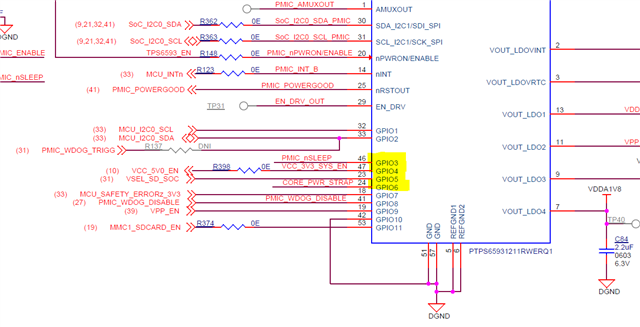

In the SK-AM62A-LP EVM schematic, GPIO3/GPIO4/GPIO5/GPIO6 are 3.3V input signals or 5V output signals.

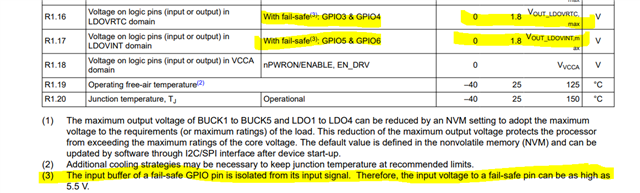

In the TPS6593-Q1 datasheet, they are 1.8V signals as shown below.
The notes say that a 5.5V signal is OK for a fail-safe GPIO, but can GPIO3/GPIO4/GPIO5/GPIO6 be input up to 5.5V?

Best Regards,
Ishiwata

1 month ago

+1 Nicholas McNamara 1 month ago

TI__Mastermind 20409 points

Hello Ishiwata,

That's correct, while those are the ABS max preferably it would be under the Recommend Operating Conditions. The fail-safe GPIO inputs should be done after power has been applied to the PMIC and not energized before PMIC power has been applied to the fail-safe GPIOs.

BR,

Nicholas McNamara

0 Shuji Ishiwata 1 month ago in reply to Nicholas McNamara

Mastermind 7845 points

Hi Nicholas,

Thank you for your reply.
I understand that 1.8V is recommended, but up to 5.5V can be input

Best Regards,
Ishiwata

Power management

Power management forum

TPS6593-Q1: Fail-safe GPIO pins
