TPS65219: Power on sequence

Kris Feng

Part Number: TPS65219
Other Parts Discussed in Thread: AM623

Tool/software:

We are now using TPS6521904RHBR to power AM623, we tested the power sequence between VDDA1V8 and VDD_1V2; VCC_CORE and VDD0_CORE, and it does not match the criteria from spec.

Is there any debugging approach ?

VDDA1V8

C84

VDD_1V2

C85

＞4.5

3.04

FAIL

VCC_CORE

C81

VDD_CORE

C155

＞1.5

FAIL

2 months ago

0 Sathish Vallamkonda 2 months ago

TI__Expert 6255 points

Hi Kris,

Thank you for reaching out on E2E.

Can you capture scope plot with VSYS, EN, VDDA1V8, VDD_1V2 & VDD_CORE on 1ms time scale and send it to me for review?

Sathish

0 Kris Feng 2 months ago in reply to Sathish Vallamkonda

Prodigy 70 points

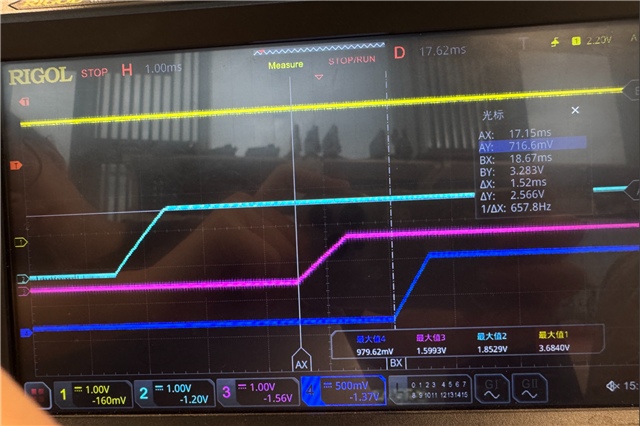

VSYS&EN(Yellow)——VDDA1V8(blue)——VDD1V2(pink)——VDD_CORE(deep blue)

0 Kris Feng 2 months ago in reply to Kris Feng

Prodigy 70 points

VSYS&EN——VDDA1V8 13.2ms

0 Kris Feng 2 months ago in reply to Kris Feng

Prodigy 70 points

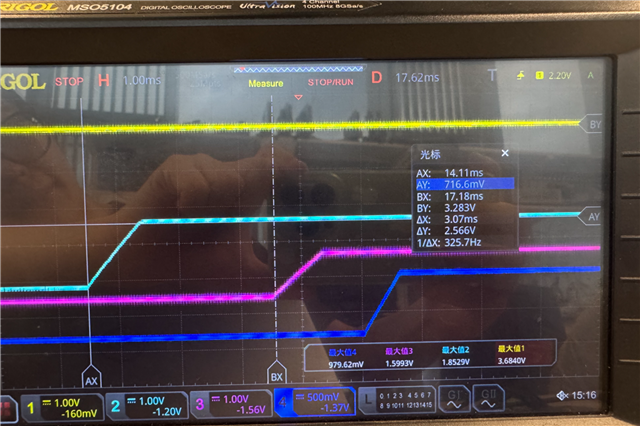

VDDA1V8——VDD1V2 3.07ms

0 Sathish Vallamkonda 2 months ago in reply to Kris Feng

TI__Expert 6255 points

Hi Kris,

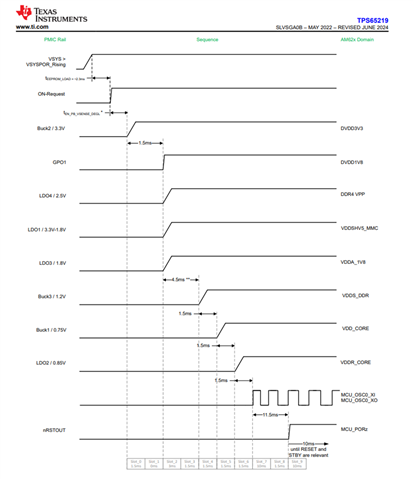

The delay between VDDA1V8 and VDD1V2 is 3ms as shown in the spec.

The delay between VDD1V2 and VDD_CORE is 1.5ms as shown in the spec.

For the delay between VSYS and VDDA1V8 -> it takes about 10ms from GPO2 starts going up and there is additional EN deglitch time and time it takes to load EEPROM (2.3ms) after VSYS reaches POR value, total close to about 13ms.

what is your concern?

0 Kris Feng 1 month ago in reply to Sathish Vallamkonda

Prodigy 70 points

Hi Sathish

Thanks for your patience, so the time slot shown in the spec is not a creteria like max or min, and if we want to adjust the slot, we can change the sequence slot registers?

+1 Sathish Vallamkonda 1 month ago in reply to Kris Feng

TI__Expert 6255 points

Hi Kris,

That is correct. The available time slot durations are 0ms, 1.5ms, 3ms and 10ms.

For the device to remember the values they need to be burned into the EEPROM.

Sathish

0 Kris Feng 1 month ago in reply to Sathish Vallamkonda

Prodigy 70 points

Thanks, we misunnderstood the reference value in spec, thank you for your elaboration.
