BQ27Z561-R2: Hibernate Mode Entry

Uri Margalit

Prodigy 70 points

Part Number: BQ27Z561-R2
Other Parts Discussed in Thread: BQSTUDIO

Tool/software:

How can I enter the fuel gauge into Hibernate Mode using the BQstudio?

Please provide simple sequence of steps.

How can I be sure it is in Hibernate Mode, as far as I understand i2c communication disables Hibernate Mode.

Thanks Uri

2 months ago

0 Alan Frias 2 months ago

TI__Mastermind 27405 points

Hello Uri,

This question has been assigned and will be followed up when possible.

Thank you,
Alan

0 Jonny 2 months ago in reply to Alan Frias

TI__Mastermind 25021 points

Hello,

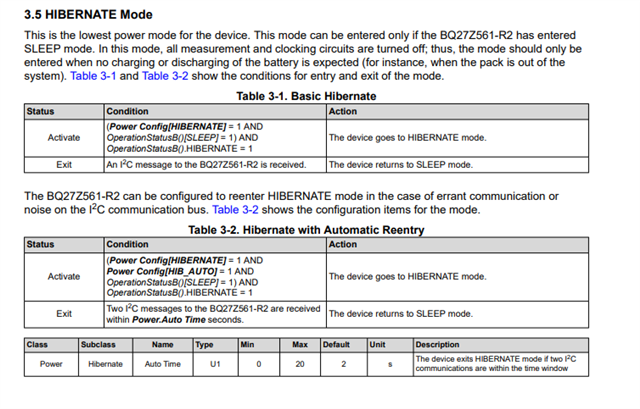

Please refer to the following section from the device Technical Reference Manual.

You will know whether the gauge is in hibernate mode depending on if the Operation Status A [HIB] bit is set or not.

Regards,

Jonny.

0 Uri Margalit 2 months ago in reply to Jonny

Prodigy 70 points

Hi Jonny,

Please show how to do it from BQstudio.

0 Jonny 2 months ago in reply to Uri Margalit

TI__Mastermind 25021 points

Hello,

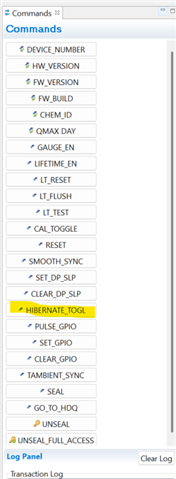

There is a hibernate toggle command that can be sent.

Regards,

Jonny.

0 Uri Margalit 2 months ago in reply to Jonny

Prodigy 70 points

Hi thanks for your answer.

I sent the toggle hibernate command.

not sure that the fuel gauge entered to this mode.

Can you add the registers flags before toggle and after?

Please add the Operation Status A [HIB] bit as you mentioned in your previous answer.

Thanks,

Uri

0 Jonny 1 month ago in reply to Uri Margalit

TI__Mastermind 25021 points

Hello,

The Operation Status A [HIB] bit should toggle.

Regards,

Jonny.
