BQ41Z90EVM: How to Identify IC Version on EVM (BMS081 Rev A)

Vinay Mande

Part Number: BQ41Z90EVM
Other Parts Discussed in Thread: BQ41Z90, BQSTUDIO

Tool/software:

Hello,

I am currently working with the BQ41Z90 fuel gauge IC using the BQ41Z90 EVM (BMS081 Rev A). According to the Technical Reference Manual, only device versions 4.2x support LED display functionality.

I would like to confirm the exact version of the IC installed on my board.

Best Regards,

Vinay

1 month ago

0 Alan Frias 1 month ago

TI__Mastermind 25475 points

Hello,

This question has been assigned and will be reviewed when possible.

Thank you,
Alan

0 Diego 1 month ago in reply to Alan Frias

TI__Mastermind 25795 points

Hi,

Where in the TRM is this stated?

Regards,

Diego

0 Vinay Mande 1 month ago in reply to Diego

Prodigy 85 points

Hi Diego,

It is mentioned in TRM's section 8.1 on page no. 85

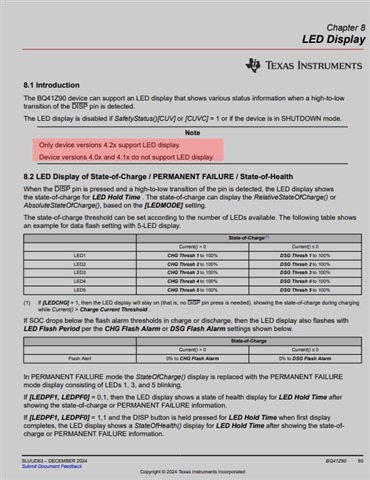

Please check below attached screenshot.

Additionally,

Let me know how CFETOFF and DFETOFF pins to be used, as I tried pulling them high to REG18 and low to the GND which didn't turned off FETS.

Also, let me know if any changes can be done in BQStudio to achieve this.

0 Diego 1 month ago in reply to Vinay Mande

TI__Mastermind 25795 points

Hi,

I believe that is a TRM mistake, to my knowledge all BQ41z90 units have LED support.

Section 7.3.5.1 in the TRM explains how CFETOFF and DFETOFF work.

Regards,

Diego

0 Vinay Mande 1 month ago in reply to Diego

Prodigy 85 points

Hi Diego,

Thanks. I found the section for the CFETOFF and DFETOFF functionality but it is present in datasheet's section 7.3.5.4.

More importantly, as CFETOFF and DFETOFF pins are multifunction pins. I assume that I can configure them through BQStudio but I am unable to find settings for the same. If you can help me with that it would be great.

Regards,

Vinay

0 Diego 1 month ago in reply to Vinay Mande

TI__Mastermind 25795 points

Hi,

I believe this feature has not been implemented yet, I will check with the FW team.

Regards,

Diego
