LP8866EVM: How to enable all LED?

ArTzy

Part Number: LP8866EVM

Tool/software:

Hi Experts,

Would like to ask using the GUI of LP8866EVM:

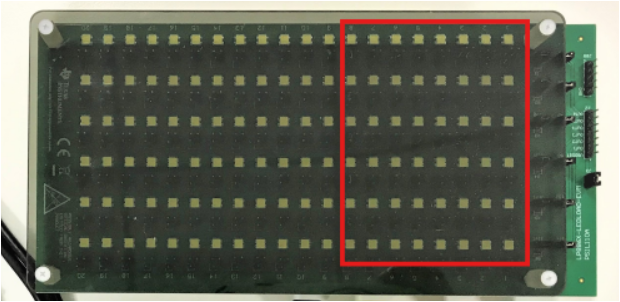

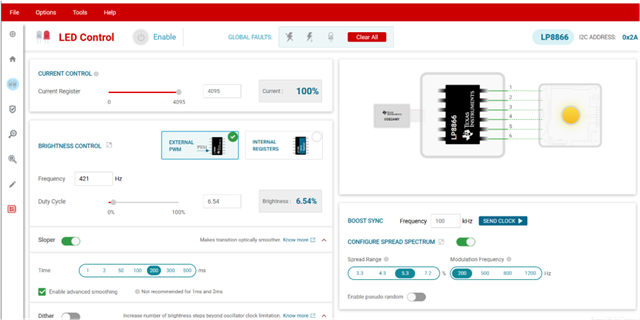

After this configuration on LP8866EVM GUI software, only the first 8 columns of LEDs are glowing. Remaining are not glowing. How to enable all the LED?

Thank you.

Regards,
Archie A.

25 days ago

0 Gui He 25 days ago

TI__Mastermind 27276 points

Hi Archie

Our expert will reply to you later.

Thanks and best regards.

0 Zhiqian Wu 25 days ago

TI__Mastermind 31275 points

Hi, Archie

You can take off the shading board and change the jumper.

0 ArTzy 21 days ago in reply to Zhiqian Wu

TI__Genius 17395 points

Hi Zhiqian,

As you said, we take off the shading board and changed the jumper. But till 14th Column only able to move to enable LED. If we move the jumper to the 15th column, we're getting Global Faults.

Diver can't enable all the LEDs at a time?? Or is there any solution for this? Kindly provide your feedback.

Thank you.

73,
Archie A.

0 Zhiqian Wu 21 days ago in reply to ArTzy

TI__Mastermind 31275 points

Hi, ArTzy

For 15LED, the total output voltage is higher than 45V, and it may see some fault.

What is the target LED number you want? Maybe I could give you some solution.

Power management

Power management forum

LP8866EVM: How to enable all LED?
