TPS2116: Bi-directional current flow when the switch is ON.

Hossam Moghrabi

Part Number: TPS2116

Tool/software:

Hello,

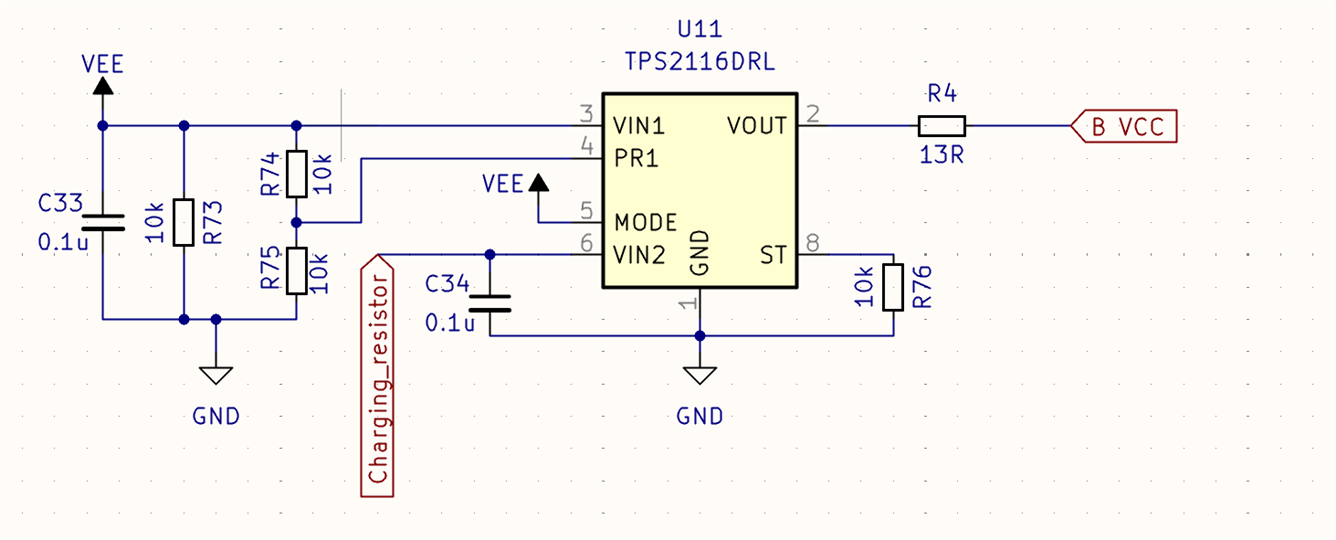

I have the circuit here: https://imgur.com/wxQDq5B

I have 2 power supplies: "VEE" and "Charging_resistor" which goes to the output as seen in the image. Only one is active at a time with priority is given to VEE.

I need the "Charging_resistor" supply to have bi-directional current flow since it is a battery but I read there is a reverse current block in this device.

output might be 3.3v or 3v while battery can be 3v or 3.1v...etc but still i need it to be charged.

Will this circuit work as intended?

if not, then i might replace it with back-to-back P-MOSFET load switch and muxing circuit.

thanks

26 days ago

0 Hossam Moghrabi 24 days ago

Intellectual 360 points

hello,

any news on this?

0 Kunal Goel 24 days ago in reply to Hossam Moghrabi

TI__Guru* 79181 points

Hi Hossam,

Reverse current blocking can prevent battery to charge from VOUT.

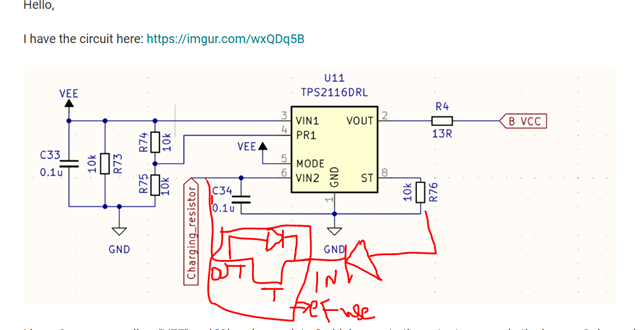

You can add something like this:

Regards

Kunal Goel

0 Hossam Moghrabi 24 days ago in reply to Kunal Goel

Intellectual 360 points

hello

why take it from ST pin? or do you mean the output?

i want something better than using diodes... if this won't work then i could make a circuit with a pmosfet as load switch + ideal diode using p-mosfet and 2 matched pnps. Then connect the outputs together which will achieve isolation and so on.

Is there any other device than tps2116 which can do the job while also being cheap?

thanks
