TPS65130: Abnormal high current drain while no load for TPS65130

Peter Tseng

Mastermind 6340 points

Part Number: TPS65130

Tool/software:

Hi Team,

customer feedback the TPS65130 drains high current while no loading.

They needs to control the ENP signal by MCU.

If tied ENP and PSP then will become normal.

Attached waveform for ENP and current waveform. FYI.

Please help to check.

Thanks.

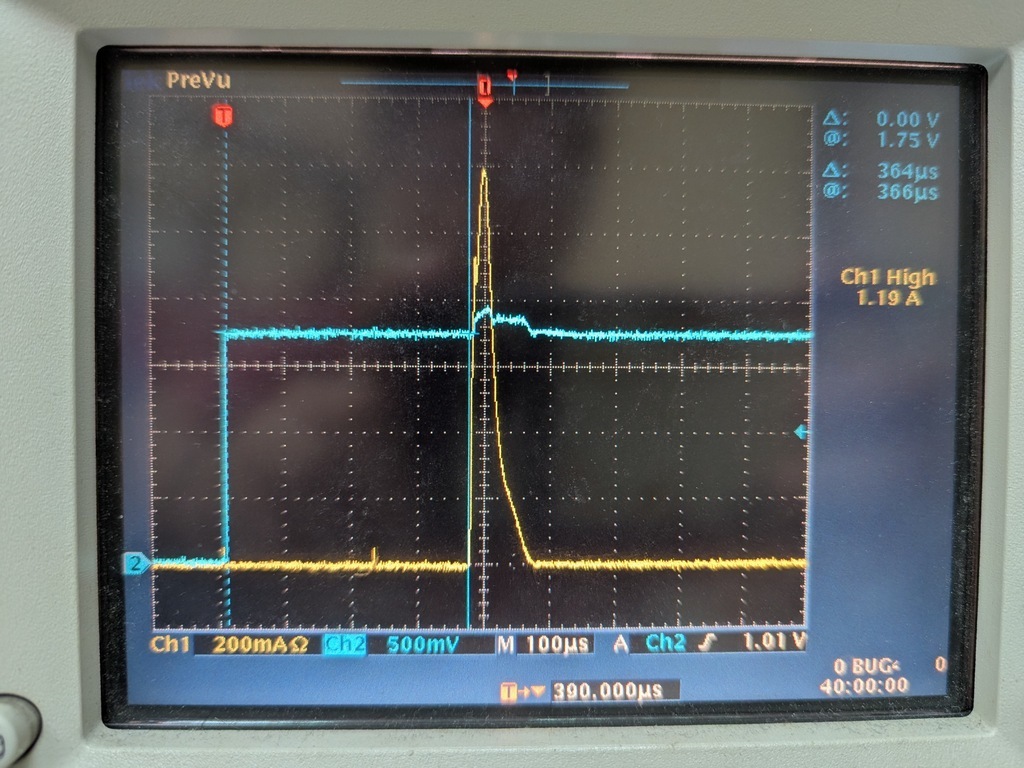

1. ENP controlled by MCU:

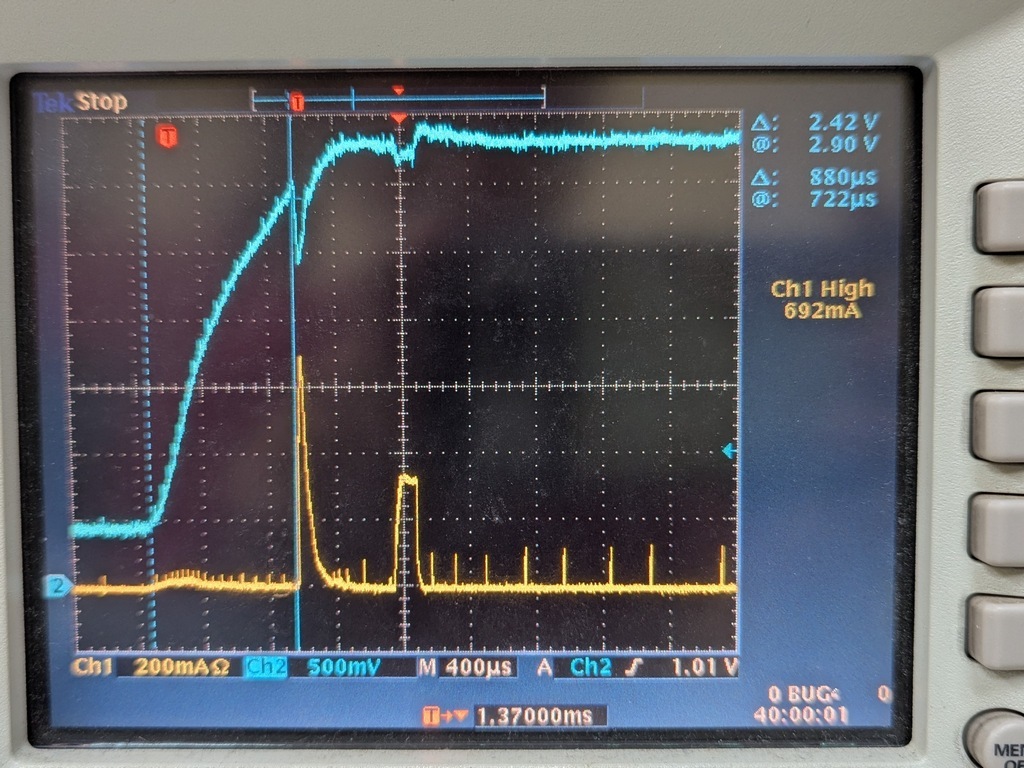

2. ENP direct connected with VIN:

3 months ago

0 Colin Chen 3 months ago

TI__Mastermind 21981 points

Hi Peter,

Could you check the INP waveform as well?

Also, please send me the schematic to check.

Thanks,

Colin

0 Peter Tseng 3 months ago in reply to Colin Chen

Mastermind 6340 points

Hi Colin,

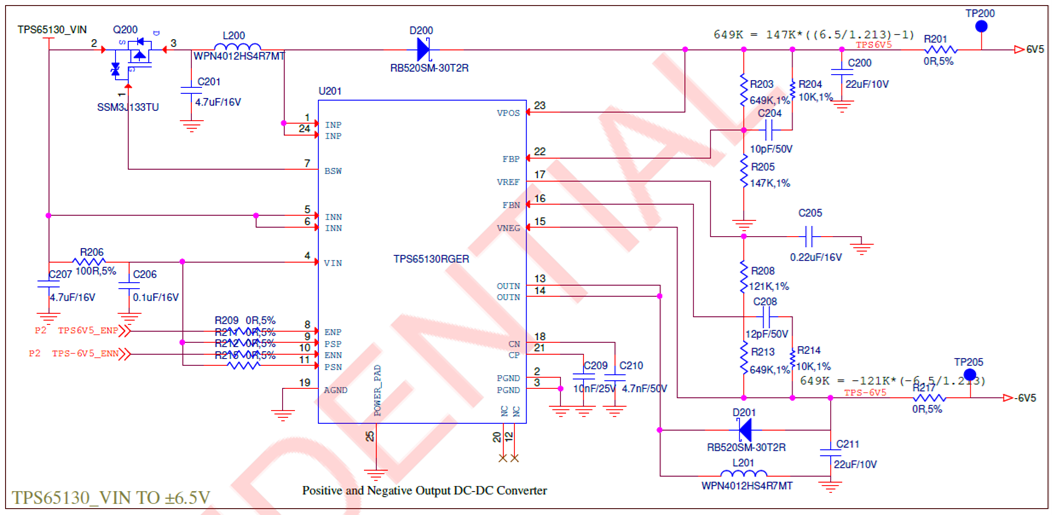

Please find the attached file for schematics.

About the INP waveform, it is not available now since there is no oscilloscope on hand for customer.

Please help to check if there is anything wrong with the schematics first?

Thanks.

0 Colin Chen 3 months ago in reply to Peter Tseng

TI__Mastermind 21981 points

Hi Peter,

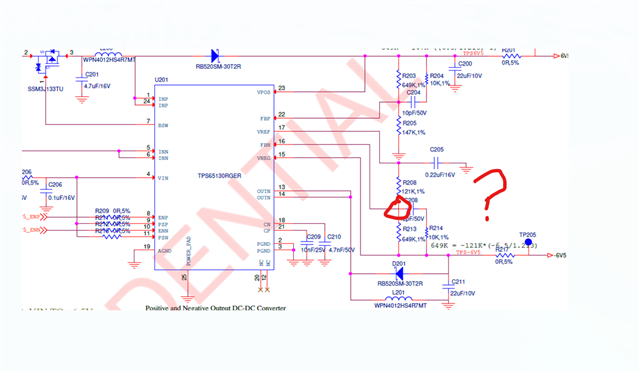

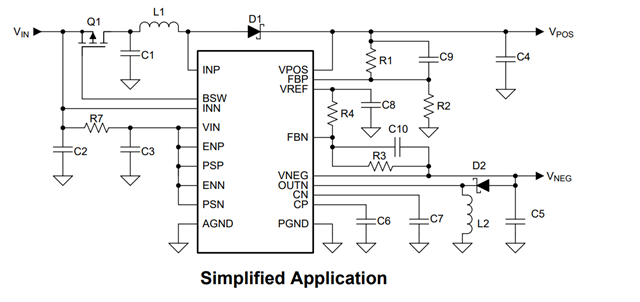

Please make sure if red marker is right. I post the reference for your attention.

Thanks,

Colin

0 Peter Tseng 3 months ago in reply to Colin Chen

Mastermind 6340 points

Hi Colin,

The R208, R213, and C208 are tied together.

Besides, customer also did some experiment to enable ENP and ENN early that almost follow up with Vin, the current will decrease.

May I know if there is any power sequence requirement for Vin and ENP/ENN?

0 Colin Chen 3 months ago in reply to Peter Tseng

TI__Mastermind 21981 points

Hi Peter,

I guess there may be some leakage current flow from VIN to load before enable.

Did customer test with load or no load?

Thank,

Colin

0 Peter Tseng 3 months ago in reply to Colin Chen

Mastermind 6340 points

Hi Colin,

What status should I use to test with or without load? Enable ENP/ENN or not?

0 Colin Chen 3 months ago in reply to Peter Tseng

TI__Mastermind 21981 points

Hi Peter,

Could me some time to check.

Colin

0 Colin Chen 3 months ago in reply to Peter Tseng

TI__Mastermind 21981 points

Hi Peter，

I checked and found that this inrush current is normal when the EN is later than VIN. This is because during the enable state, VIN charges the input and output capacitors. Since VIN is higher, the current is also higher. If the EN value is earlier than VIN, VIN will rise from 0 to a higher level during the enable state, so the current charging the input and output capacitors is smaller.

Thanks,

Colin
