Tool/software:
The CAD package downloaded from TI’s “CAD symbols, footprints & 3D models” page for the TPS1685 does not match the actual device outline.

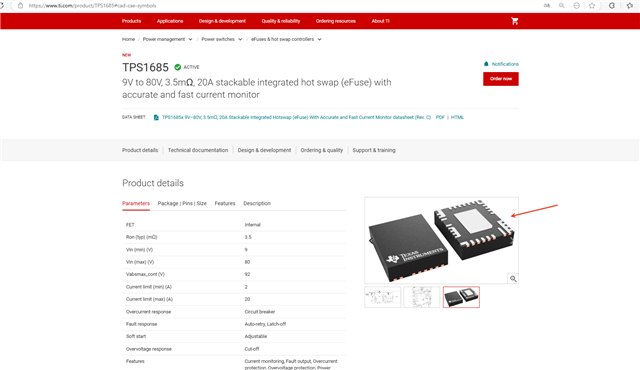

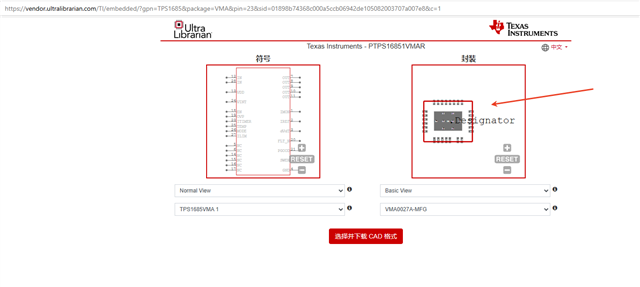

The attached photos show the real package vs. the current CAD footprint, revealing dimensional and pad-position discrepancies.
Please update the footprint immediately to match the physical device so we can proceed with the layout—thank you for your urgent support!
