USB2GPIO-LOADER-SW: Command based GUI in Fusion similar to older version

Prakash B B

Part Number: USB2GPIO-LOADER-SW
Other Parts Discussed in Thread: USB-TO-GPIO2

Tool/software:

Hi,

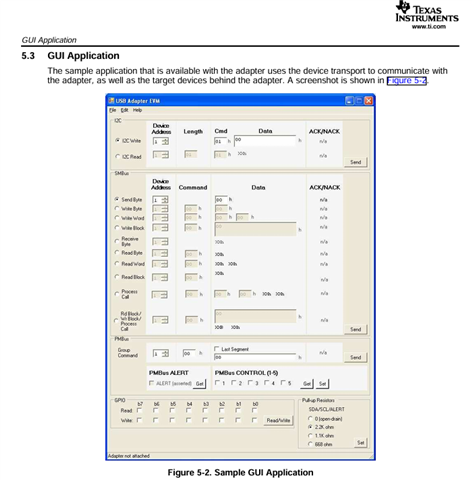

I wish to send the command read/write with my own data to VCU118 device (which has SMBus protocol implemented) using Fusion GUI through USB-to-GPIO2 device in the above shown format. How can I do it? Please help with images if you have some.

Thanks in advance.

Regards

Prakash

24 days ago

0 Britton Jones 24 days ago

TI__Expert 8546 points

Hi Prakash,

1. Open up Fusion Digital Power Designer

2. Click I2C GUI from the main menu

...

3. Click Tools at the top of the screen, and click SAA/SMBUS/I2C Tool. This will take you to the menu where you can send any transaction type with any data to an address of your choosing

...

You must input a few things in this screen to do this properly: the address of the device, the type of transaction, and the command/data for that transaction

Best regards,

Britton

0 Prakash B B 23 days ago in reply to Britton Jones

Prodigy 160 points

Hi Britton Jones ,

Thanks for the response.

I am unable to see the GUI because I am not connected to the device since it's yet to arrive.

Our target application is a PMBUS slave which will use SMBUS physical layer for frame transfers. As per the latest PMBUS spec, new commands like page_plus_write, page_plus_read etc are supported in this application. From SMBUS layer point of view, these are mapped to process call commands. So, can you please confirm that we can frame any PMBUS command as defined by SMBUS physical layer frame using this Fusion software?

Regards

Prakash

0 Britton Jones 23 days ago in reply to Prakash B B

TI__Expert 8546 points

Yes all transaction/command types are supported

0 Prakash B B 20 days ago in reply to Britton Jones

Prodigy 160 points

Hi Britton Jones

Thanks for the repsonse.

As mentioned, I am connecting 3 pins (SCL (pin-1), SDA (pin-0), & GND) out of 10 pins of ribbon cable of USB-to-GPIO2 to 3 pins of VCU118 (VCU118 Evaluation Board User Guide (UG1224) • Viewer • AMD Technical Information Portal), hope this Fusion software will detect this connectivity and help me for PMBus transactions. Correct me if I am wrong.

Regards

Prakash

0 Prakash B B 9 days ago in reply to Britton Jones

Prodigy 160 points

Britton Jones

I am waiting for your response so that we can close this.....

0 Dominik Hartl11 9 days ago in reply to Prakash B B

TI__Guru 61266 points

TI can't comment on if this will work with an AMD product. smbus uses SCL, SDA and GND so this should be enough to talk to a compatible smbus device. Please check with AMD support if their product is compatible.

0 Prakash B B 6 days ago in reply to Dominik Hartl11

Prodigy 160 points

Hi Dominik Hartl11

Thanks for the response.

AMD device supports any SCL, SDA, and GND lines either through GPIOs or I2C driven lines.

Anyways, once I receive the device I will check and come back for any issues.

Thanks for patience response.
