TPS544C20: IC programming issue

Allen yang

Intellectual 910 points

Part Number: TPS544C20

Tool/software:

Hi Team,

Step 1:
Provide the program to the programming vendor for flashing.

Expected Result: Program is successfully flashed.

Observed Result: Program was flashed without errors.

Step 2:
After flashing, verify that the result is correct.

Expected Result: Verification passes with no issues.

Observed Result: Result was correct.

Step 3:
Power cycle the IC and confirm its status.

Expected Result: IC status remains normal and unchanged.

Observed Result: A change in the code was detected.

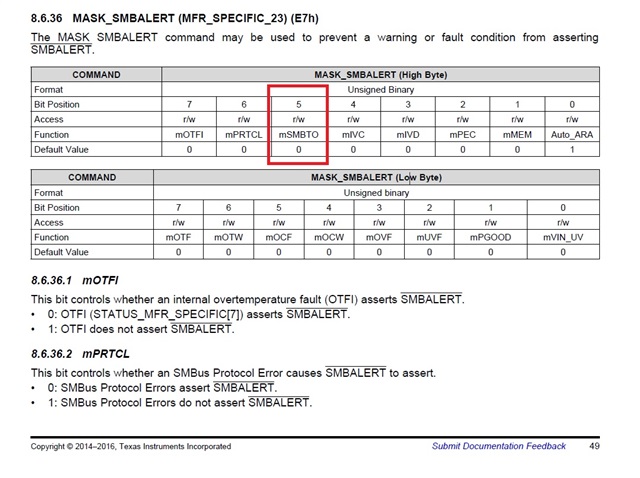

CMD 0xE7 , write 0x0100, read back 0x2100

Additionally, please provide the SOP for IC program loading and exporting

Thanks

23 days ago

0 Eileen Hernandez Hernandez 21 days ago

TI__Expert 5458 points

Hi Allen,

Our team will respond next week.

0 Allen yang 19 days ago in reply to Eileen Hernandez Hernandez

Intellectual 910 points

Hi Eileen,

Please provide the SOP for IC program loading and exporting first.

Thanks

0 Allen yang 18 days ago in reply to Allen yang

Intellectual 910 points

Any updates?

0 Britton Jones 18 days ago in reply to Allen yang

TI__Expert 8556 points

Hi Allen,

As part of the import process, you will also want to ensure there is a store to nvm and restore command as some commands do not update on the fly. Can you share the import file you are using so we can test on our side?

Best regards,
Britton

0 Allen yang 17 days ago in reply to Britton Jones

Intellectual 910 points

Hi Britton,

Will it affect programming if the programmer’s address is different from the product’s address?

How to check the CHECK SUM using TI Fusion Design Online?

please provide the SOP for IC program loading and exporting.

The programming file is as follows.

TPS544C20 1.0 Address 1 Text.csv

0 Allen yang 16 days ago in reply to Allen yang

Intellectual 910 points

Hi Britton,

Any updates?

0 Britton Jones 16 days ago in reply to Allen yang

TI__Expert 8556 points

Hi Allen,

I do not have an SOP document, but I can help walk you through our typical steps if you are using Fusion Digital Power Designer for export and import if you are having trouble

The programming file you shared here does not have a STORE_USER_ALL command and RESTORE_USER_ALL command which is a requirement for all NVM-backed commands. If the command does not update on the fly then the STORE & RESTORE is required to see any changes. I recommend adding a STORE and RESTORE command as the last transaction in your programming file

Check sum is a device dependent feature. It looks like TPS544C20 does not have this feature inherently. You will need to write your own script to support automated check sum

Best regards,

Britton

0 Allen yang 11 days ago in reply to Britton Jones

Intellectual 910 points

Hi Britton,

There are 5 TPS544C20 devices designed on the board, all with the same programming configuration. Do I need 5 separate versions of the program, or can they be shared?

0 Britton Jones 11 days ago in reply to Allen yang

TI__Expert 8556 points

Hi Allen, You will need a file for each unique address

Best regards,

Britton
