BQ79600-Q1: Transformer HV-LV

Oscar Liborio

Part Number: BQ79600-Q1

Tool/software:

Hello ,

My costumer have a question regarding the transformer usage for the communication between BQ79600 and BQ79731

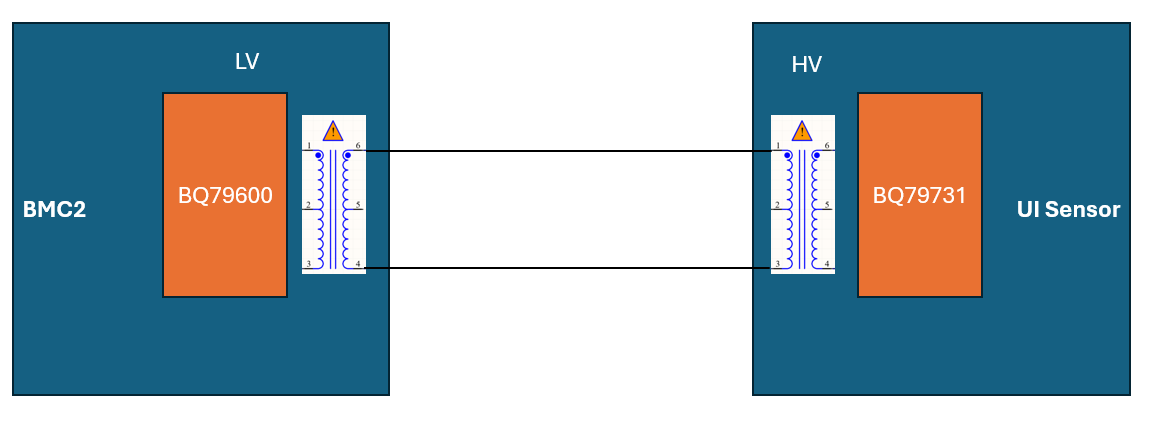

One channel of the BQ79600 is connected to UI sensor BQ79731. BQ79600 is on LV potential and BQ79731 is on HV potential.

Currently we are using two isolation transformers, it is possible to do this with just one transformer.

If yes on which side, would you suggest the transformer?

Oscar

24 days ago

0 Pranav Ananthan 24 days ago

TI__Intellectual 1395 points

Hello,

I do not recommend using just one transformer for this implementation.

Thank you,

Pranav Ananthan

0 Oscar Liborio 24 days ago in reply to Pranav Ananthan

TI__Intellectual 930 points

Hello,

Can you make a suggustn on which type of tranformer woud you use?

Thanks,

Oscar

+1 Pranav Ananthan 23 days ago in reply to Oscar Liborio

TI__Intellectual 1395 points

I recommend following the BQ79600-Q1 Design Recommendations found here: https://www.ti.com/lit/pdf/sluaa16, which recommends the following isolation transformers:

HMU1228NL or HM2147NL.

Thank you,

Pranav Ananthan
