TPS7A4501-SP: Mechanical dimensions and tollerance of TPS7A4501-SP

MARIAN DUTU

Part Number: TPS7A4501-SP

Tool/software:

Dear Sir/Madam,

I kindly request the complete mechanical dimensions and their tolerances for the TPS7A4501-SP component. In particular, I would appreciate detailed information regarding the die asymmetry (4.7 mm) in relation to the outer body (dimensions ranging between 6.66 mm and 7.06 mm) and with respect to the pins.

Thank you in advance for your assistance. I look forward to your prompt response.

Best regards,

27 days ago

0 Daniel Hartung 27 days ago

TI__Mastermind 28765 points

Hey Marian,

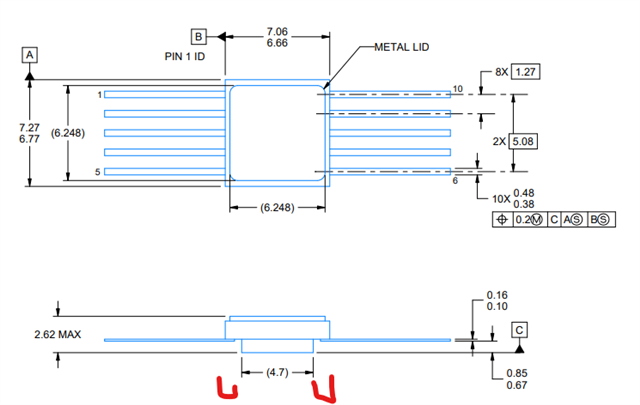

To clarify what you are asking for, are you effectively asking for the tolerance on what I have highlighted in red?

Thanks,
Daniel

0 MARIAN DUTU 27 days ago in reply to Daniel Hartung

Prodigy 10 points

exactly

0 Daniel Hartung 27 days ago in reply to MARIAN DUTU

TI__Mastermind 28765 points

Hey Marian,

I will work on finding and providing the information we can on this parameter.

Thanks,
Daniel

0 Daniel Hartung 25 days ago in reply to Daniel Hartung

TI__Mastermind 28765 points

Hey Marian,

The tolerance of the parameter (each individually) is +/- 0.2 mm

Thanks,
Daniel

0 MARIAN DUTU 18 days ago in reply to Daniel Hartung

Prodigy 10 points

Hi,

I would like to confirm that I have understood correctly your explanation. The die measures 4.7 mm, and the external package measures 7.06 mm. Does this mean that the clearance is 1.18 mm on each side, with a tolerance of ±0.2 mm?

Thank you for your clarification.

0 Daniel Hartung 18 days ago in reply to MARIAN DUTU

TI__Mastermind 28765 points

Hey Marian,

To be clear everything in the picture is part of the package.
The thing on the bottom is a heatsink, not the die.

The measurements you are talking about are correct however.

Thanks,
Daniel
