TPS7B86-Q1: Package Structure Diagram

Hi You,

Thanks for asking us!

The diagram may be found at the end of the respective datasheets, and that will be the best source for those diagrams. However, I've posted screenshots and links below. Note the package designation in the upper left of the pages.

Technically the TPS628501QDRLRQ1, TPS37AC465A7DYYRQ1, & LMR43620MSC5RPERQ1 belong to other product lines so I can only provide so much info about them.

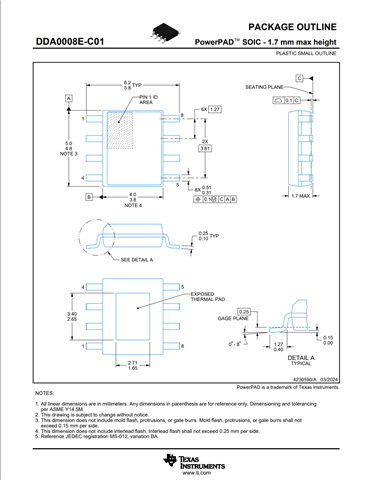

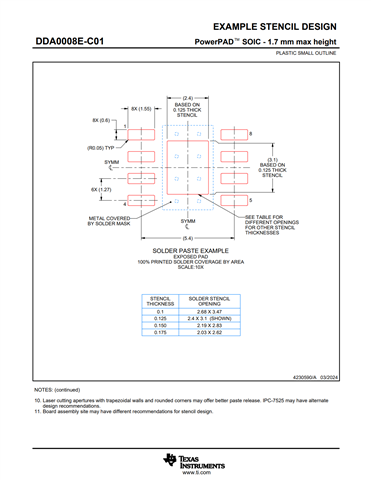

TPS7B8633QDDARQ1 (TPS7B86-Q1 DDA package):

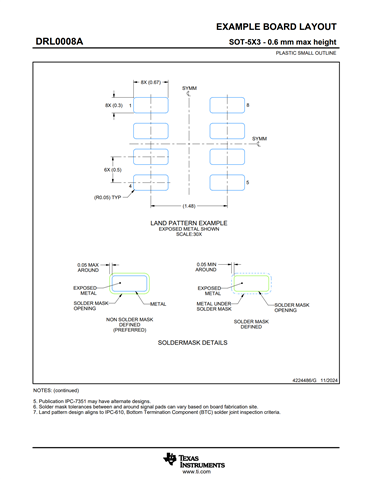

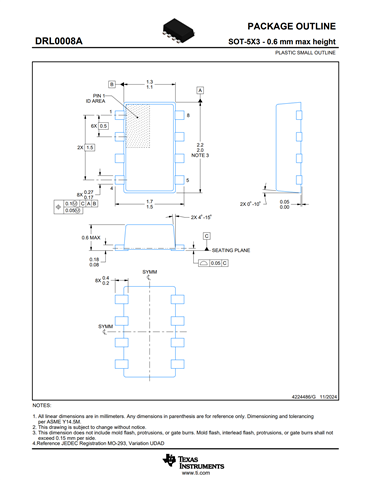

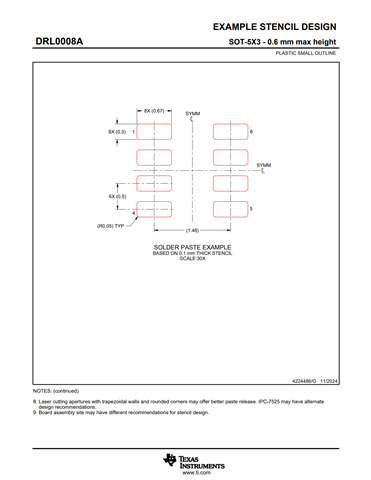

TPS628501QDRLRQ1 (TPS628501-Q1 DRL package):

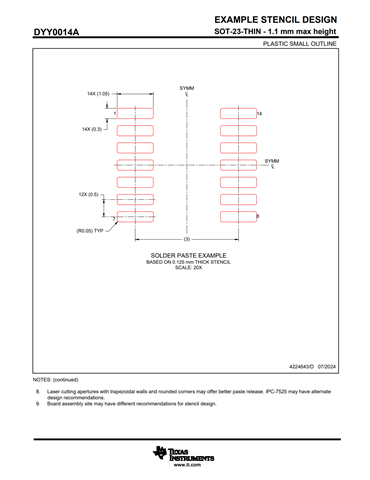

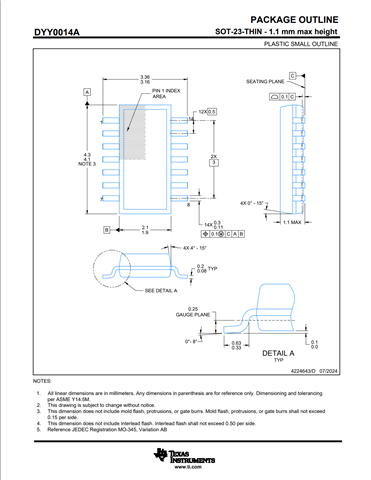

TPS37AC465A7DYYRQ1 (TPS37-Q1 DYY package):

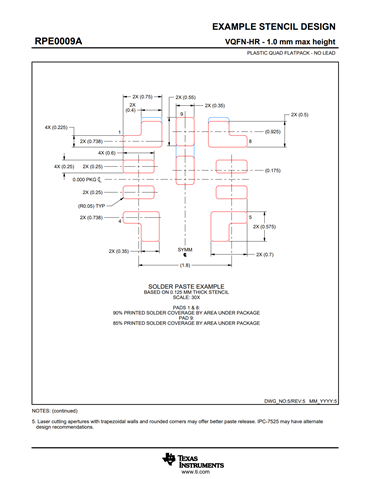

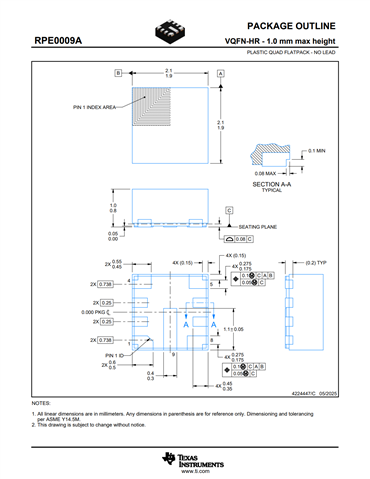

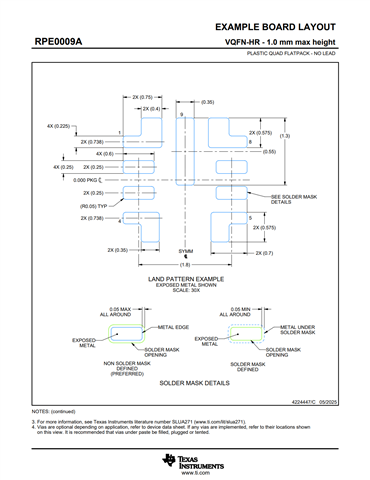

LMR43620MSC5RPERQ1 (LMR43620-Q1 RPE package):

Best,

Gregory Thompson
