TPS548C26: [KERP3] Schematic review

Allen Lin

Intellectual 2710 points

Part Number: TPS548C26

Tool/software:

Hi Expert,

This is for Compal server project KERP3.

Customer would like to use TPS548C26 as 2nd.

Please help to review schematic and layout, thanks.

Layout file pw: 123

kerp3_amd_turin_mb_a00_all_20250708_bom.pdf

KERP3_SP-A401P_MGXMB_A00_20250505-0900.zip

Thanks

Allen

1 day ago

0 Nancy Zhang 1 day ago

TI__Mastermind 49430 points

Hi Allen,

Please see my schematic markup as attached. I could not open the PCB file even using viewer due to database problem. I don't know why.

kerp3_amd_turin_mb_a00_all_20250708_bom_markup.pdf

Thanks,

Nancy

0 Allen Lin 1 day ago in reply to Nancy Zhang

TI__Intellectual 2710 points

Hi Nancy,

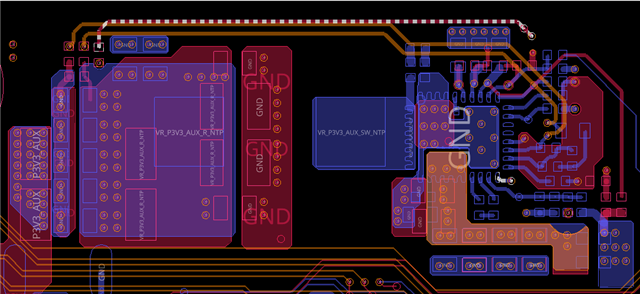

Layout I want to check if VOSNS (red highlight) is okay? It is close to FB sense point (orange line next to it) but not same point as datasheet example.

Thanks

Allen

0 Nancy Zhang 22 hours ago in reply to Allen Lin

TI__Mastermind 49430 points

Hi Allen,

It looks good. Thanks,

Nancy
