LM65645-Q1: LM65645SRZTRQ1

Vladi Sheva

Part Number: LM65645-Q1

Tool/software:

Hi team,

Good day.

The Ultralibirian file uploaded for LM65645-Q1 doesn't have 3d-model. Help me found it, please.
https://vendor.ultralibrarian.com/TI/embedded/?gpn=LM65645-Q1&package=RZT&pin=20&sid=0195191d3ae5001ec2dce45be3a10506f00a406701328&c=1 are not rounded

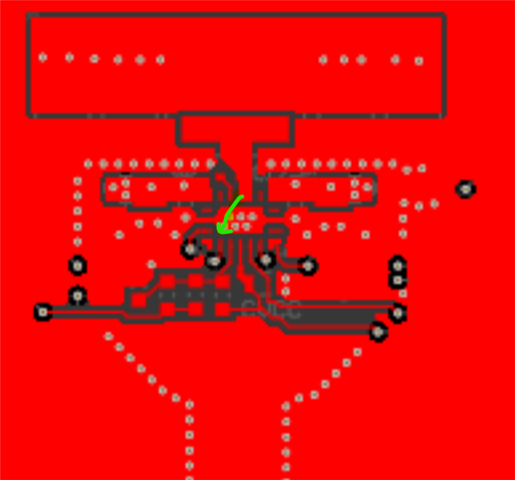

and there's footprint (for Altium): pads 1,7,11, 17 and thermal pad are not rounded but it has to
https://www.ti.com/lit/ml/mpqf684b/mpqf684b.pdf?ts=1757450790131&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FLM65645%252Fpart-details%252FLM65645RZTR

1 day ago

0 Youhao Xi 17 hours ago

TI__Guru* 78100 points

Hi Vladi,

Please see the attached 3d step file below. Sorry I am confused by your 2nd question. Could you clarify?

RZT0020A.stp

Thanks,

Youhao

0 Vladi Sheva 2 hours ago in reply to Youhao Xi

Prodigy 10 points

Thank you very much for the step-file!
about 2nd question:
for example loook at Thermal Pad in datasheet (LAND PATTERN EXAMPLE) - it has dimensions for corners 3X (R0.223). I mean corner style is rounded. But in footprint from Ultralibirian there is 45 degrees corner style. It's same for pads 1,7,11, 17. I think it's not problem and both variant is correct.

And dear Youhao! I have one more question:
In datasheet LM656x5-Q1(SNVSCH2A – SEPTEMBER 2024 – REVISED MAY 2025) https://www.ti.com/lit/ds/symlink/lm65645-q1.pdf?ts=1757526508786&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FLM65645-Q1%253FkeyMatch%253DLM65645%2526tisearch%253Duniversal_search%2526usecase%253Dpartmatches
Table 7-2. Mode Selection.
149.9kΩ for AUTO-mode and SPREAD SPECTRUM Wide ±10% DRSS
Problem: I can't find resistors 149.9kOhm - there's not at Mouser and Digikey. What I should to do? Can I use 150kOhm? Will it be ok?
