TPS63051: Regulator stuck in OVPM mode

Faheem Shaikh

Part Number: TPS63051
Other Parts Discussed in Thread: TPS63050

Tool/software:

Hi, I have a PCB using the TPS63051RMWT and the regulator is stuck in OVPM mode. I am supplying power with a 3.7V Lipo Battery 400mAh.

When I plug in the battery, the 3.3V test point reads as 6.7V when measured across ground.

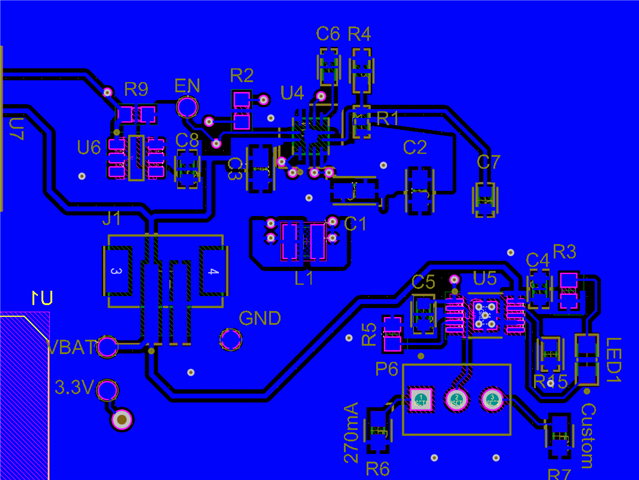

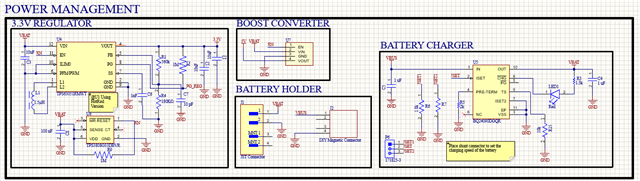

Here is the schematic of the regulator alongside the pcb layout.

Can you help identify what is going on here?

4 days ago

0 Mulin Yuan 4 days ago

TI__Genius 15160 points

Hi Fasheem,

Thank you for reaching out. Expert for this device is out of office. Please expect a late response by tomorrow.

Regards,

Mulin

0 Lei Zhong 2 days ago in reply to Mulin Yuan

TI__Mastermind 18820 points

Hi Faheem,

Could you have a quick check that whether the top feedback resistor R1 is correctly mounted?

Regards

Lei

0 Faheem Shaikh 2 days ago in reply to Lei Zhong

Prodigy 10 points

Lei,

Yes I checked the continuity for all components connected to the regulator.

I believe the issue is that the TPS63051 is a fixed regulator, and the circuit i made is for an adjustable one. Is this correct?

To fix this issue, I can just swap in a TPS63050 regulator correct? Then the regulator will output 3.3V correctly?

Regards,

Faheem

+1 Lei Zhong 2 days ago in reply to Faheem Shaikh

TI__Mastermind 18820 points

Hi Faheem,

Totally agree with your comments. Sorry I didn't notice this.

Actually, you may do another quick experiment if available: remove R4 and short R1. If the Vout is right 3.3V, then I think there is no issue of the circuit, except the chip version.

Regards

Lei

0 Faheem Shaikh 1 day ago in reply to Lei Zhong

Prodigy 10 points

Lei,

Thanks for your help! Voltage at the output is reading as 3V3 after removing R4 and shorting R1. We also removed C7 as well.

Appreciate the help
