UCC28C40: UCC28C40:

Shiva Giriveni

Prodigy 10 points

Part Number: UCC28C40
Other Parts Discussed in Thread: UCC28C42, , TINA-TI

Tool/software:

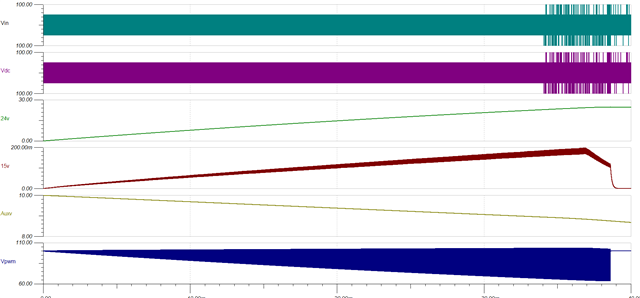

We tried the simulations using UCC28C40 example model and modified as per the typical application design schematic of UCC28C42 document.. We observed that simulation results are not getting appropriate, we are not able to understand what is the error can you please help us to solve the issue specially we observed that VPWM is not coming properly.

0 Hong Huang 1 day ago

TI__Guru 73795 points

Hi,

We need to review your simulation circuit. Is it TINA TI? please provide your simulation file so we can review it.

0 Shiva Giriveni 1 day ago in reply to Hong Huang

Prodigy 10 points

Dear Team,

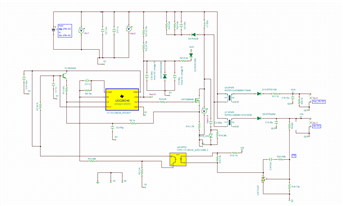

Please Find the simulation file which was done in the TINA-TI. Looking forward for your Reply.

Thank you

0 Hong Huang 21 hours ago in reply to Shiva Giriveni

TI__Guru 73795 points

Hi,

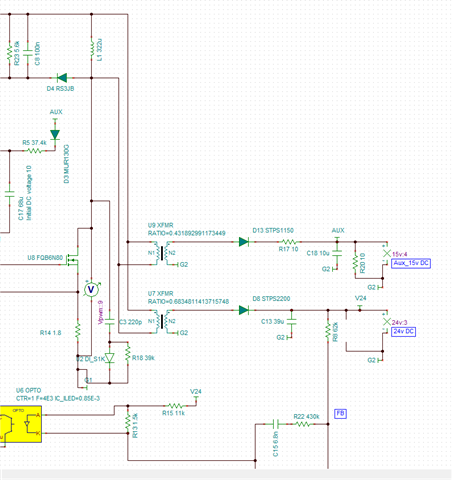

It looks your transformer polarities are not correct for flyback. You need to correct the polarities and re-try.

When U8 turns on the secondary-side should not see voltage to turn on D13 and D16, but yours do.

If this is a forward then you missing the output inductors.

0 Shiva Giriveni 5 hours ago in reply to Hong Huang

Prodigy 10 points

DC-Web Bench.TSC

Dear Team,

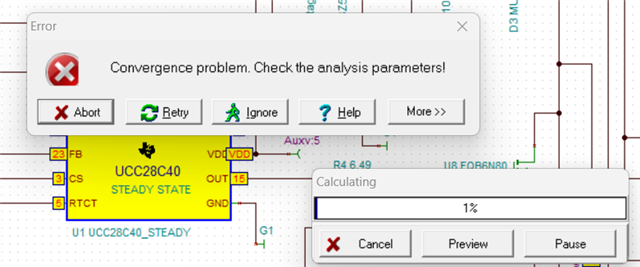

I Have Changed the Transformer Polarities But Still, i Was Unable to see the proper output. Still is there anything that i was missing.

Thank You

0 Hong Huang 41 minutes ago in reply to Shiva Giriveni

TI__Guru 73795 points

Hi,

Please provide your updated simulation file.
