TPS65987D: PP1 not working

Arnaud Van Genechten

Part Number: TPS65987D

Tool/software:

Hello,

I am using a TPS65987DDH as a power source only device (PP_HV1). For some reason PP1 is never switched ON, no matter what I try in the configuration. I tried with multiple different devices (tablet, smartphone, etc) but I always get the same result.

I have included the pjt file.

Thank you in advance,

Arnaud

agrouter.pjt.zip

1 day ago

0 Chris Sterzik 1 day ago

TI__Guru 64001 points

Hello,

The zip file appears to be empty.

It appears that you do not have the PP_CABLE connected.

Regards,

Chris

0 Arnaud Van Genechten 1 day ago in reply to Chris Sterzik

Prodigy 100 points

Hello Chris,

Thank you for the quick reply!

Here is the full file. I do not not use VCONN so PP_CABLE is not connected.

Regards,

Arnaud

agrouter.pjt

0 Chris Sterzik 1 day ago in reply to Arnaud Van Genechten

TI__Guru 64001 points

Hello,

Please connect to GND or 5V.

RE: TPS65987DDJ: PP_CABLE pin

Is VIN3_3 supplied when performing these tests? Can you determine if the image is successfully loaded and the PD transitions to APP mode?

Regards,
Chris

0 Arnaud Van Genechten 1 day ago in reply to Chris Sterzik

Prodigy 100 points

Yes APP mode is working and 3.3v is supplied constantly, I checked the configuration through i2c and everything checks out. If you look at the screenshot, it indicates a charge detection complete line, even though BC1.2 is deactivated in the configuration.

0 Chris Sterzik 1 day ago in reply to Arnaud Van Genechten

TI__Guru 64001 points

Hello,

Can you place a scope onto the PPHV1 and VBUS?

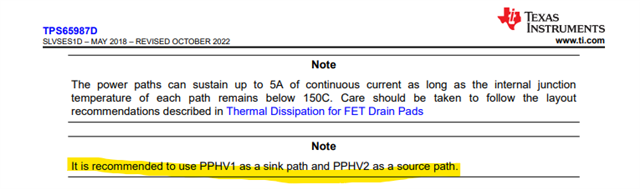

I also noticed this comment in the datasheet. How difficult would it be to move the path to PPHV2?

Regards,
Chris
