Hi team,

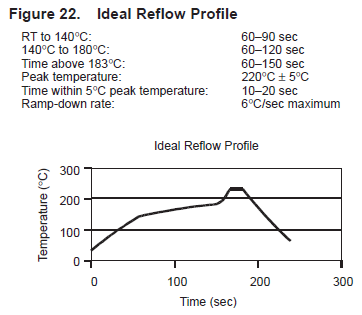

Regarding the profile for LP8758-EA, the diagram below shows ideal conditions. Are there any implementation results under more relaxed conditions?
Specifically, the peak temperature of 225°C is a challenging factor.
Also, it appears the results are under an N₂ environment.
Is an N₂ environment specified as an implementation condition?
Best Regards,
Ryu.
Hi Ryu,
What document is this figure 22 from? Is this the MicroStar BGA reference guide?
The LP8758-EA comes in the DSBGA package.

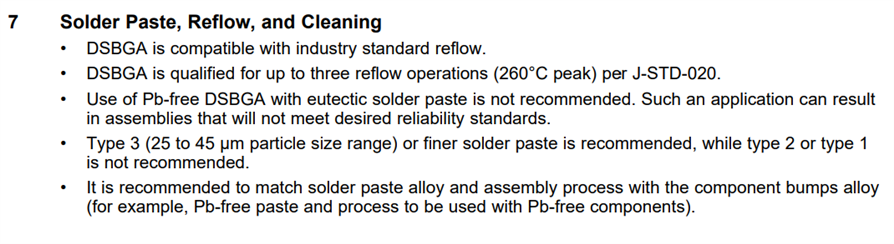

Please refer to section 7 of the following document for reflow profile of DSBGA: https://www.ti.com/lit/an/snva009ai/snva009ai.pdf
The general JEDEC standard J-STD-020D can be followed for the reflow profile (LP8758-EA is MSL 1, qualified for 260C peak)
Please refer to the following for more information:
Best Regards,
Sarah
