ISO6763: Emission for ISO6763DWR

Part Number: ISO6763
Other Parts Discussed in Thread: ISO1540,

Hello Team,

We are using the digital isolators ISO6763DWR and ISO1540DR in one of our products.
We have 4* each of the above ICs in the PCB.

We are conducting compliance testing for the device.
Could you please provide the carrier frequency for these ICs?
Additionally, are there any emission graphs available for them?

We look forward to your response.

21 days ago

0 Aaditya V. 20 days ago

TI__Mastermind 18525 points

Hello,

The ISO6763DWR has a carrier frequency of 450MHz. I will check the carrier frequency and emissions for the ISO1540 device and reply later tomorrow.

Regards,
Aaditya

0 Aaditya V. 19 days ago in reply to Aaditya V.

TI__Mastermind 18525 points

Hello,

As I mentioned, The ISO6763DWR has a carrier frequency of ~450MHz. The ISO1540 is an edge-based device, therefore it does not have an internal oscillator.

Regards,
Aaditya

0 Sv 16 days ago in reply to Aaditya V.

Intellectual 585 points

Hello Aaditya,
Thank you for your reply.

Can you please share the radiated emission and radiated immunity graphs of the device if available?.

0 Andrew J 16 days ago in reply to Sv

TI__Mastermind 31775 points

Hello Sv,

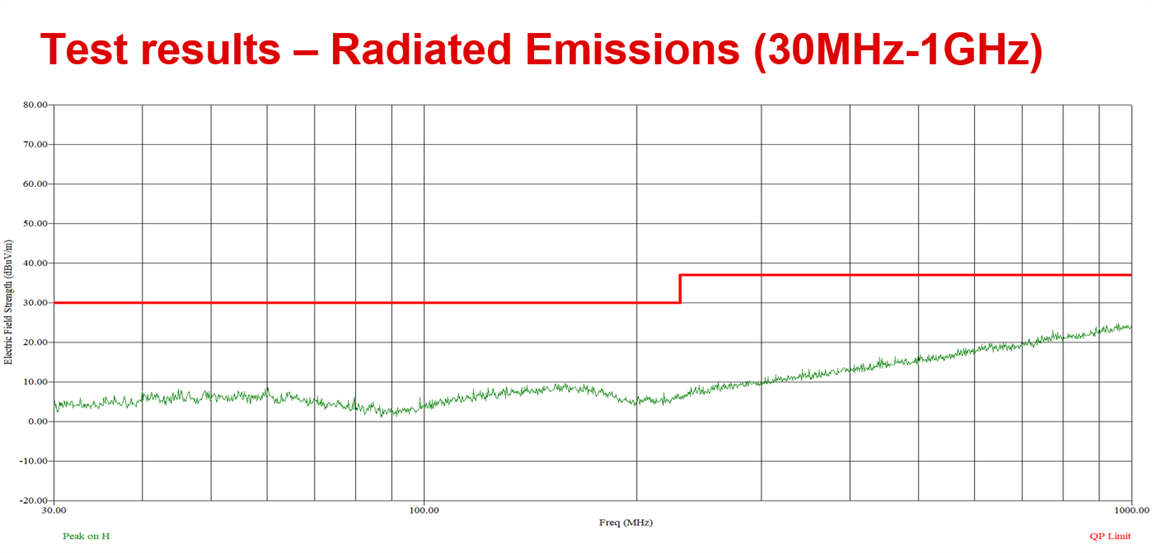

The results for ISO6763DWR are shown below. ISO1540 has similar RE results and passes the same RI levels.

Best,
Andrew

0 Sv 15 days ago in reply to Andrew J

Intellectual 585 points

Hello Team,
Thank you for the reply.

Aaditya V. said:
The ISO1540 is an edge-based device

Out of curiosity, can you please explain this?.

I was expecting ISO154 will be a device that uses some high frequency carrier frequency to pass through the galvanic region like in case of ISO6763DW.

+1 Andrew J 15 days ago in reply to Sv

TI__Mastermind 31775 points

Hello SV,

Sorry for the confusion. The ISO1540 does use a high frequency carrier (OOK) and will have similar emissions to ISO6763.

Best,
Andrew
