TPS2412: Schematic review

Jeff YANG

Part Number: TPS2412
Other Parts Discussed in Thread: TPS2330

Hi team,

Would you please help review below TPS2412 schematic?

We found TPS2330 abnormal high temperture, not sure there have any design issue. thanks!

Jeff

0 Shiven Dhir 2 months ago

Hi Jeff,

TPS2412 looks okay.

Regards,

Shiven Dhir

0 Jeff YANG 2 months ago in reply to Shiven Dhir

Hi Shiven,

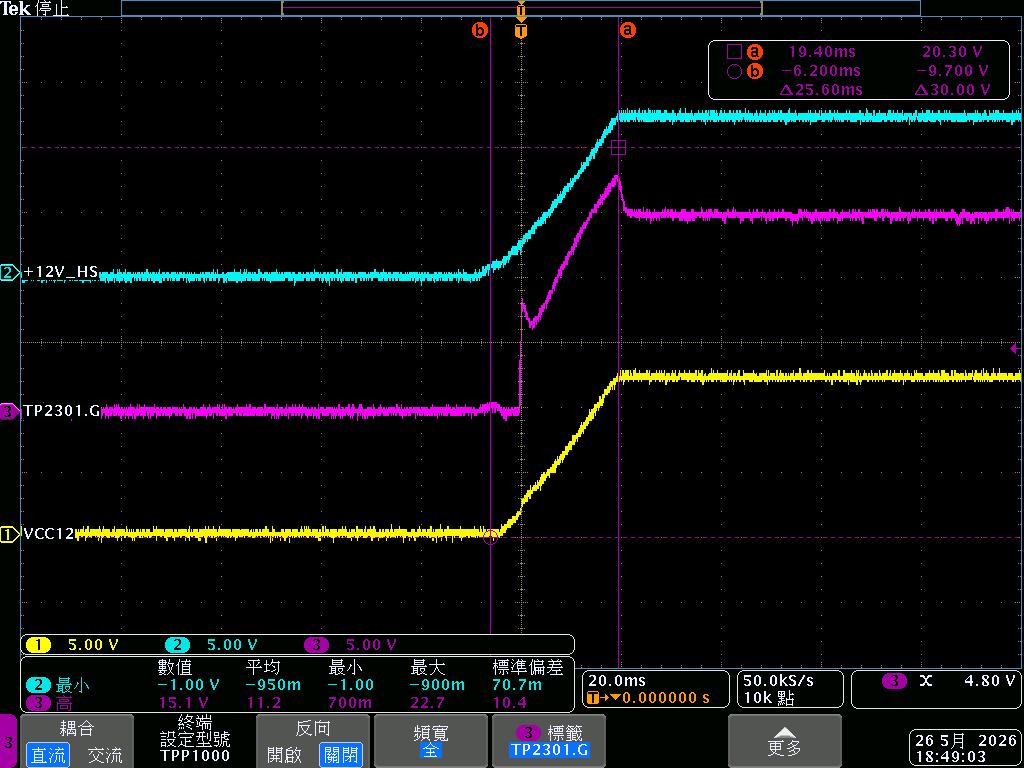

Got it, And below CH3 is TPS2412 gate in sof-start, I found it have some glitch, is it normal?

Thanks!

Jeff

0 Shiven Dhir 2 months ago in reply to Jeff YANG

Hi Jeff,

It is normal. TPS2412 is a linear regulation loop and this can be expected.

Regards,

Shiven Dhir
