DC-DC Switcher [LMR14206 Current Limit]

Dattathreya Ramachandra

Other Parts Discussed in Thread: LMR14206

Hi ,

Can any one suggest how to limit the current to 500mA in LMR14206 part, this is for mobile charger application based on 12V lead acid battery and step-down to 5V need to limit the current to 500mA.

Regards,

Datta

over 12 years ago

0 Denislav Petkov over 12 years ago

TI__Mastermind 19891 points

Hi Datta,

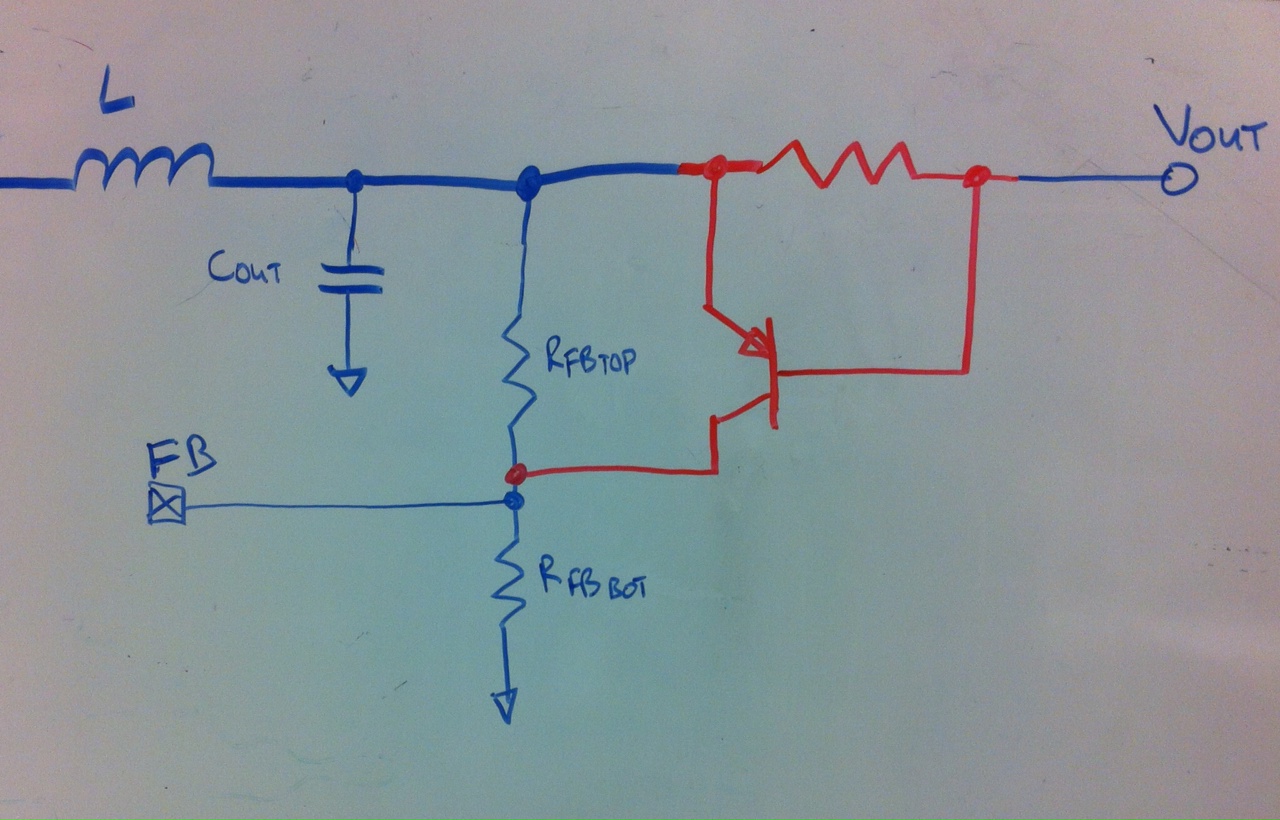

You can try to add the following circuit (in red) to pull up on the feedback pin at lower current than the internally set current limit:

Please try this in your application and see if it works for you.

Regards,

Denislav

0 Jack Mour over 12 years ago in reply to Denislav Petkov

Prodigy 10 points

R(fb_top) must be connect AFTER R(current_sence). To V(out).

Best regards.
