TPS54821 vout abnormal waveform at transient test

Other Parts Discussed in Thread: TPS54821

When I verify transient test in TPS54821 solution. I found out the strange waveform at transient test.

Who can help to explain these abnorml waveform?  (The ripple noise is very big, about 500mV)

Schematic

7484.TI_p2.pdf

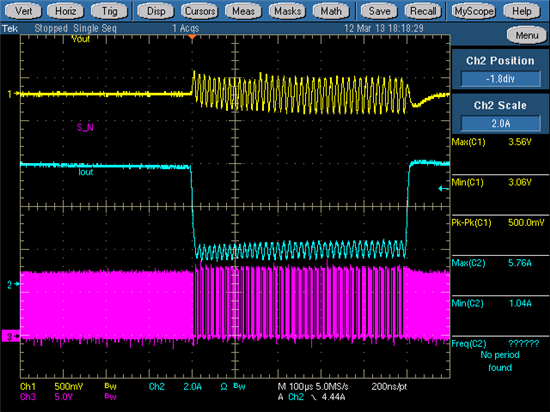

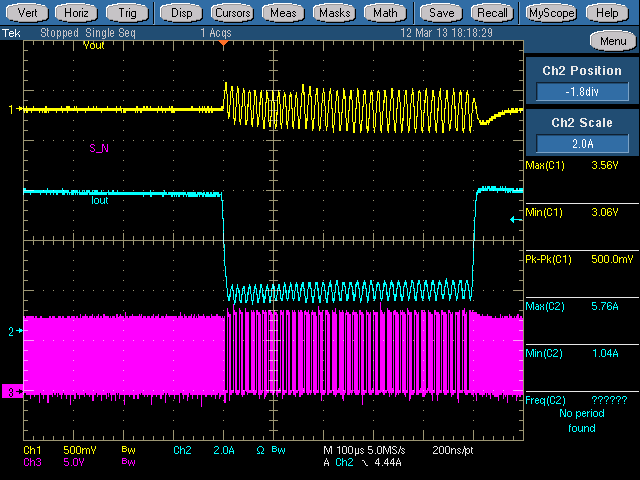

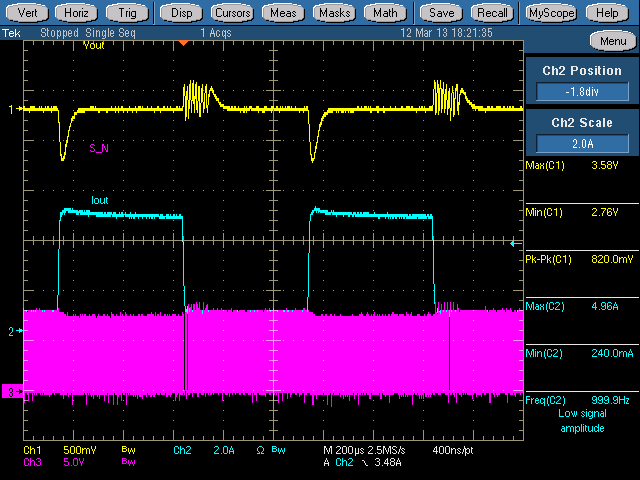

abnormal waveform 2, CH1=Vout,CH2=Iout,CH3=SW   transient 1A-5A 1KHz

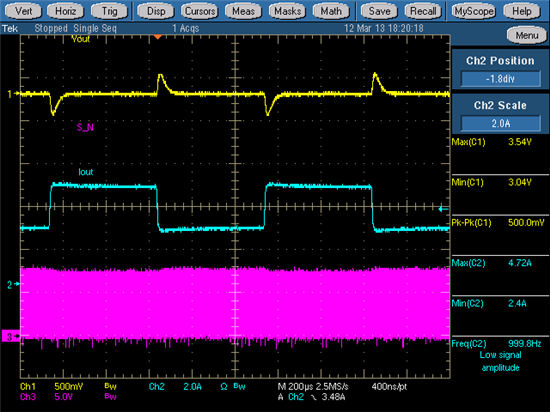

normal waveform 1 , CH1=Vout,CH3=Iout,CH3=SW transient 3A-5A 1KHz
