LM26003-Q1 Thermal resistance

Atsushi Yamauchi

Genius 4810 points

Other Parts Discussed in Thread: LM26003-Q1

I would like to confirm the thermal resistance of LM26003-Q1.

Could you please teach theta jc (Junction to case top） of LM26003-Q1?

If you don't have it, can you provide theta jc (Junction to case top） of HTSSOP-20 (the same package of LM26003-Q1)?

Best regards,

Atsushi Yamauchi

0 Ben Hopf over 12 years ago

Atsushi,

This is an SVA device, so I moved it to the Simple Switcher forum.

SVA team,

Can you help Atshushi find the requested information?

0 Giuseppe Pinto over 12 years ago

Hello Atsushi,

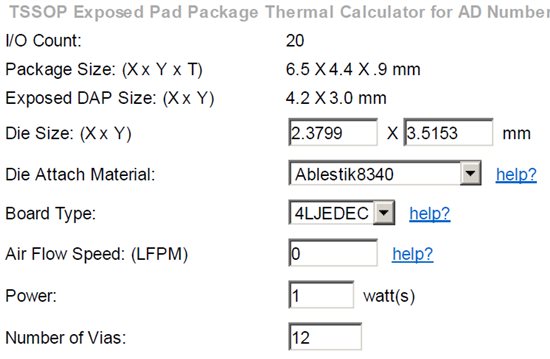

please take a look at the following image, i hope that answer your question:

Regards,

Giuseppe

0 Atsushi Yamauchi over 12 years ago in reply to Giuseppe Pinto

Genius 4810 points

Dear Giuseppe-san,

Thank you for your reply.

I would like to confirm theta ic and the junction temperature.

Is theta jc "junction to case top"?

And is the junction temperature the result of the test by EVM?

If they are right, they are very useful for the customer.

Best regards,

Atsushi Yamauchi

0 Giuseppe Pinto over 12 years ago in reply to Atsushi Yamauchi

Hello Atsushi-san,

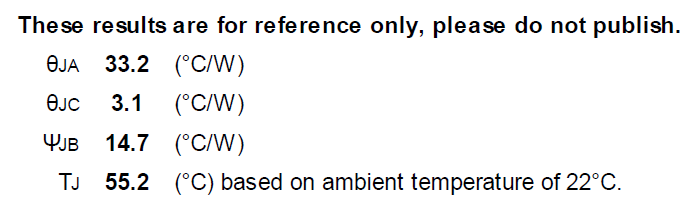

theta jc is junction to case thermal resistance and the numbers come from TSSOP Exposed Pad Package Thermal Calculator.

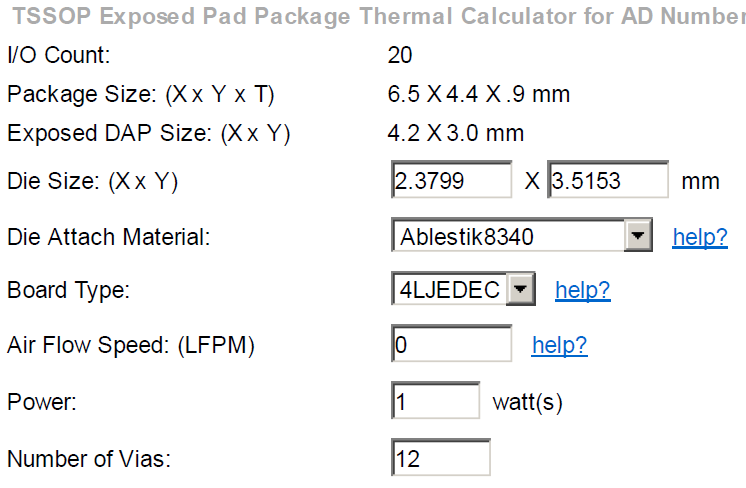

Test is based on standard JEDEC board, please see below for more info.

Regards,

Giuseppe
