UCD90160 "Turn Off Mode" control questions

Kevin Chen(TPE Analog FAE)

Hi,

What is the difference between "Pin Selected State -> Turn Off Mode" and "All Config -> On/Off Configuration -> Operation" ??

over 12 years ago

0 Daniel Katz over 12 years ago

TI__Intellectual 1450 points

Hi Kevin,

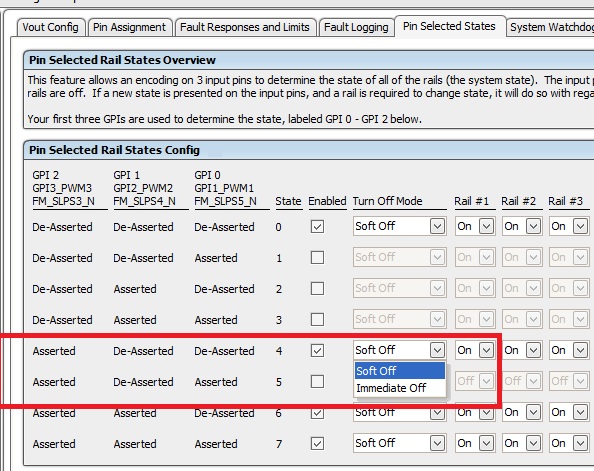

The "Pin Selected States" tab allows your first three GPIs to determine eight different system states.

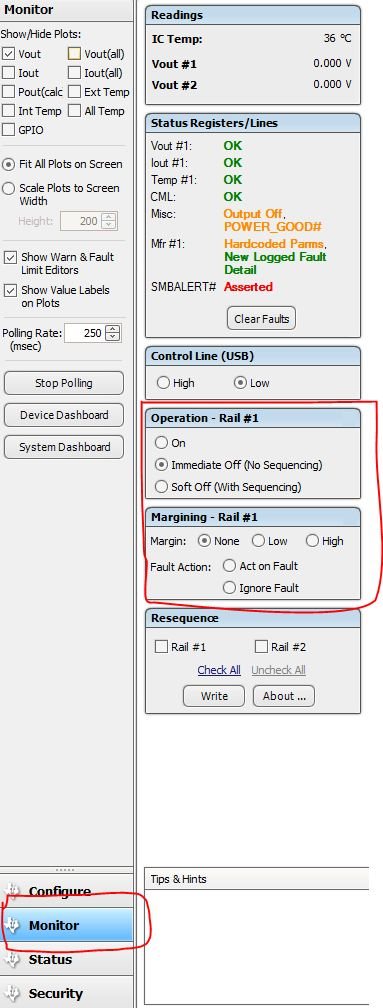

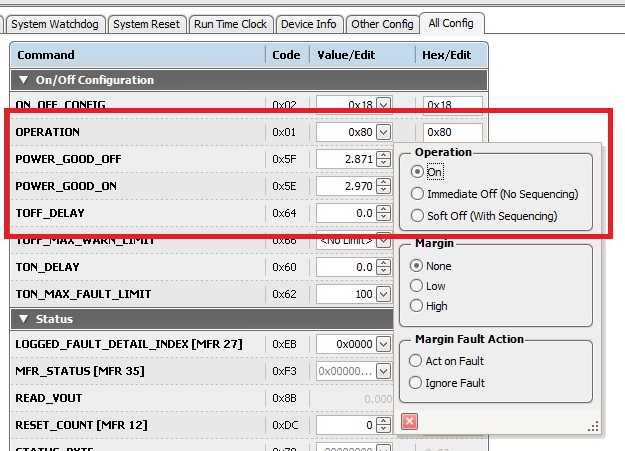

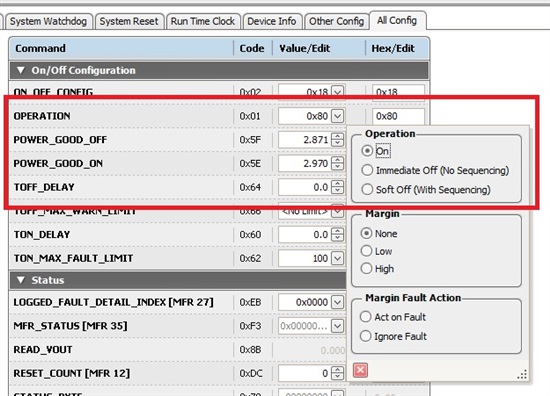

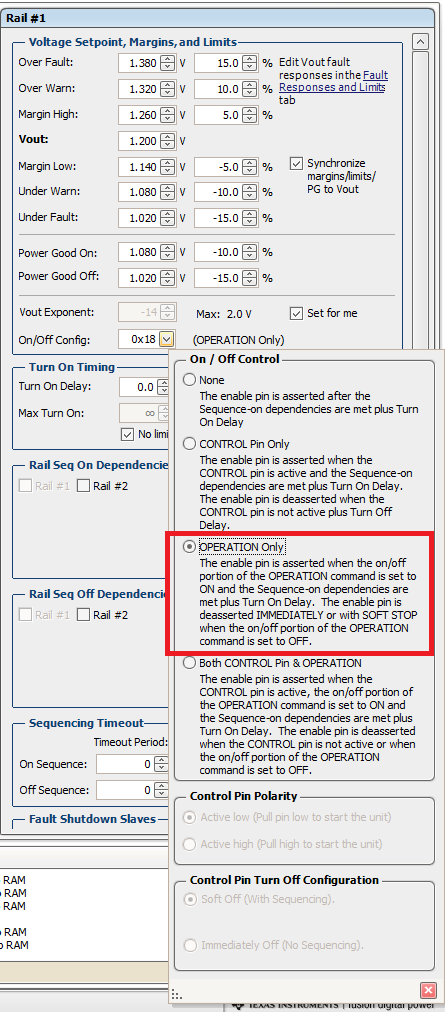

The Operation section under All Config has to do with the Operation section under Monitor. It is just another way to send the Operation command when the rail is set to Operation only:

Regards,

Dan

0 Kevin Chen(TPE Analog FAE) over 12 years ago in reply to Daniel Katz

TI__Prodigy 150 points

Hi Dan,

Thanks for your prompt reply.

I get it,

Power management

Power management forum

UCD90160 "Turn Off Mode" control questions
