UCD9090 Datashhet Table 4 pins 24, 25

Jonathan Salles

Other Parts Discussed in Thread: UCD9244, UCD9090

The specification states that pins 24, 25 are GPI1/PWM1 and GPI2/PWM2 respectively. It then states that can be used as either inputs or PWM outputs but not as GPOs. However, in the reference design for the 66AKH12 these pins are used as enables for two UCD9244 chips. The Fusion software treats them as GPIOs.

Is there an error in the specification for the UCD9090? Are these pins really GPIOs?

over 11 years ago

0 Jonathan Salles over 11 years ago

Prodigy 180 points

Will anyone from TI answer this?

0 Brad over 11 years ago

TI__Genius 13700 points

Can you provide the documentation that indicates that pins 24 and 25 are GPI pins?

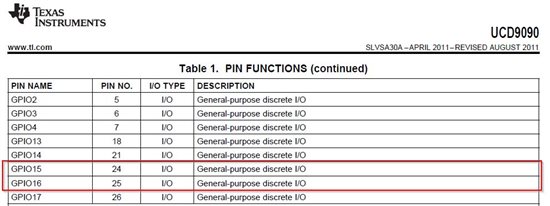

The UCD9090 datasheet indicates that pins 24 and 25 are GPIO15 and GPIO16 not GPI1 and GPI2.

0 Brad over 11 years ago in reply to Brad

TI__Genius 13700 points

I see Table 4 in the datasheet looks like the source of the confusion,

You should follow the pin functions description.

0 Jonathan Salles over 11 years ago in reply to Brad

Prodigy 180 points

Thanks Brad. I thought Table 4 must have been incorrect as the pins do seem to work as outputs.

0 Brad over 11 years ago in reply to Brad

TI__Genius 13700 points

Every single pin number in Table 4 of the UCD9090 datasheet is wrong, I'll have this sent for correction, please refer to Table 1 for the correct pin numbering.

The associated pin configuration options vs the pin names are correct in Table 4 of the AUG2011 revision of the DS, just the pin numbering is incorrect.
