The Junction Temperature of PTH03060WAH

Bourne Jason

Prodigy 10 points

Hi, I want to know where to find junction temperature of PTH03060WAH. I can not find this in its datasheet.

over 11 years ago

0 Tom Guerin over 11 years ago

TI__Mastermind 38230 points

The PTH power modules have the thermal data (SOA) safe operating data located in each product specification.

The SOA data maximum operating ambient temperatue is 85C limited by output current versus air flow .

Tom

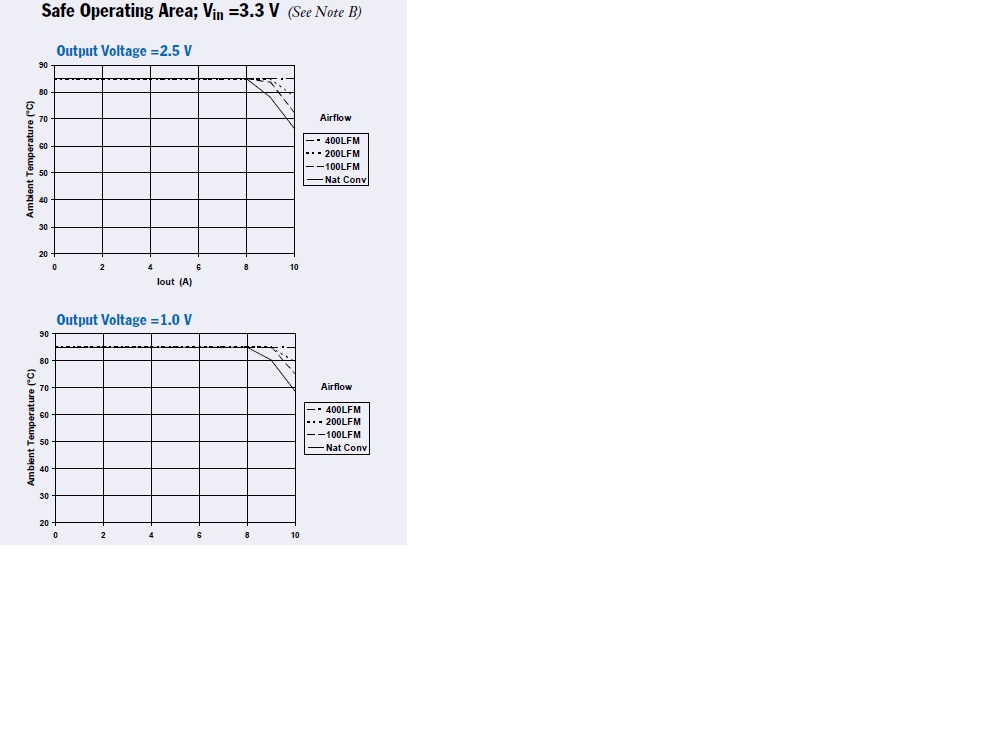

The SOA data is below.

0 Bo QI1 over 11 years ago in reply to Tom Guerin

Prodigy 10 points

Yes, you are right, the SOA give me the maximum operate temperature range but not junction temperature, junction temperature is higher than maximum operate temperature in general. So how can I find it? Should I find all of the data of components on PTH03060 module? If say so, can TI give me the component list?

0 Tom Guerin over 11 years ago in reply to Bo QI1

TI__Mastermind 38230 points

Hi:

I recommend this be question be handled off line.

Send me your e-mail address.

My e-mail address is tguerin@ti.com

Tom
