BQ24617 Battery Charger Schematic

Christopher Howard

Other Parts Discussed in Thread: BQ24617

I have a schematic layout completed for the BQ24617 battery charger, just wondering if somebody can lend another set of eyes for potential errors.

The input is 12 - 18 volts DC. There is a 7.2 volt Li_PO battery, 2 cell, 1500 mAH connected to the VBATT net.

0 Charles Mauney over 11 years ago

Please attach a file since I can not read the text.

0 Christopher Howard over 11 years ago in reply to Charles Mauney

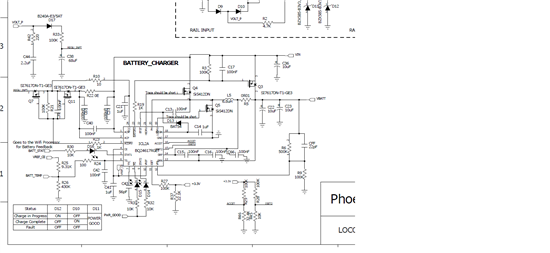

I uploaded an image of the schematic, should work.

Thank you.

0 Charles Mauney over 11 years ago

ISET1 looks like it is not a divider so this should be fixed. The pull down is on the 3.3V instead of pin 11.

I do not see any other issues.
