TPS62173 - Recommend pad layout

ee06091

Intellectual 340 points

Other Parts Discussed in Thread: TPS62173

Can't find the recommed the pad layout for TPS62173 :s Only mechanical data :s

Can you help me?

Thank you

over 11 years ago

0 Ryan May over 11 years ago

TI__Genius 13700 points

Hello,

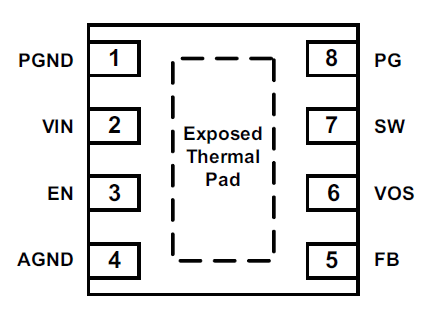

The pin out for the device can be found on Pg. 4 of the datasheet while a layout recommendation can be found on Pg. 20. The layout and thermal considerations are provided on the Pg 19-21.

0 ee06091 over 11 years ago in reply to Ryan May

Intellectual 340 points

I was wondering for something like that http://www.ti.com/lit/ml/mmsf021/mmsf021.pdf with a recommed layout pad

0 Chris Glaser over 11 years ago in reply to ee06091

TI__Guru**** 150760 points

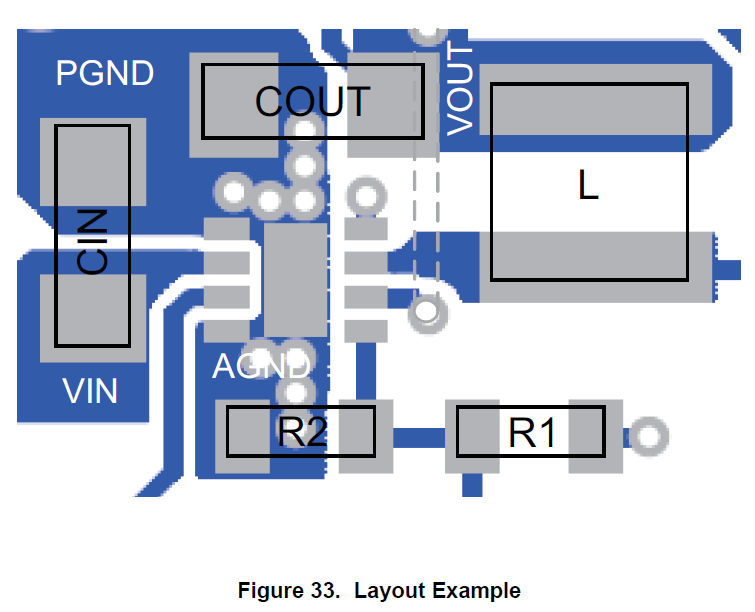

Yes, this is on page 32 of the attached.

0677.tps62170.pdf
