LP38851 / Absolute maximum rating of ADJ pin

S.Satoshi

Other Parts Discussed in Thread: LP38851, LP38841-ADJ

Hi All,

Please let me confirm about absolute maximum rating of ADJ pin. The reason for asking it is that our customer need to consider the possibility of shorting ADJ pin to the other rail like VIN or VBIAS which has high potential. Is the max rating of ADJ pin +6.0V like the other pins?

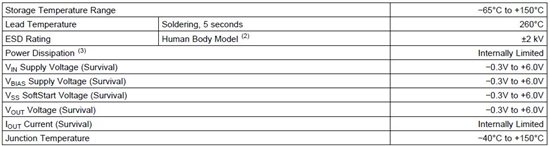

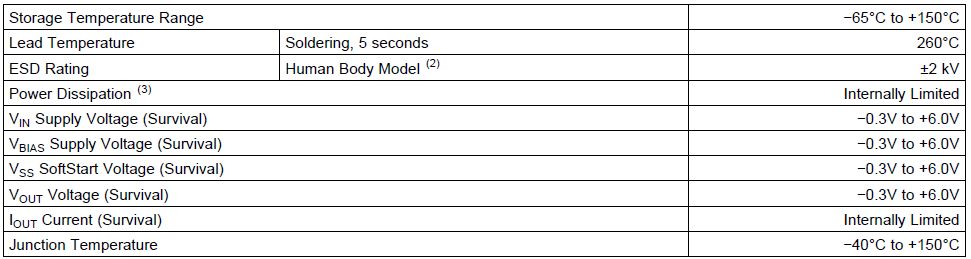

LP38851's ABSOLUTE MAXIMUM RATINGS

Best Regards,

Sonoki / Japan Disty

over 11 years ago

0 S.Satoshi over 11 years ago

Guru 21685 points

Hi All,

I'm waiting for your response. Your quick response will be appreciated.

Best Regards,

Sonoki

0 Donald Jones over 11 years ago in reply to S.Satoshi

TI__Mastermind 22610 points

Yes, -0.3V to 6.0V AbsMax for LP38851/52/53 ADJ pin

0 S.Satoshi over 11 years ago in reply to Donald Jones

Guru 21685 points

Hi Donald,

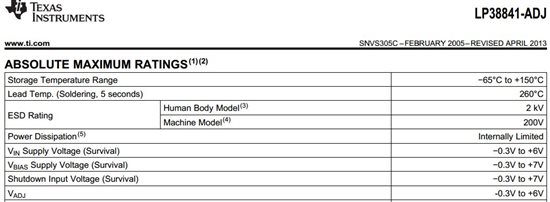

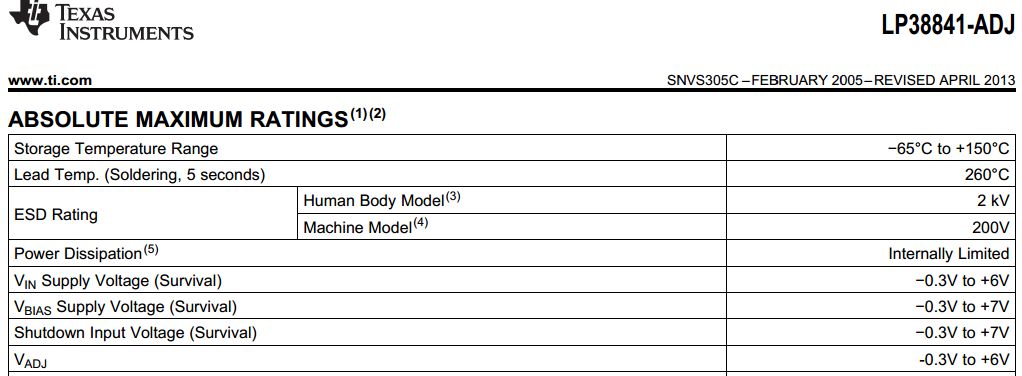

Is the internal circuit of LP38851-ADJ's ADJ pin similar with LP38841-ADJ's one? The reason of asking it is that LP38841-ADJ has AbsMax for ADJ pin and it's actually -0.3V to +6.0V.

Best Regards,

Sonoki

0 Donald Jones over 11 years ago in reply to S.Satoshi

TI__Mastermind 22610 points

I can not find any internal design details for the feedback circuitry on either device.

Different designers, but same fabrication process.

For my curiosity : What condition exists such that the customer needs to consider the shorting of the ADJ pin to Vin or Vbias?

0 S.Satoshi over 11 years ago in reply to Donald Jones

Guru 21685 points

Hi Donald,

The background I asked this is that I'd like to have a certain basis to say the AbsMax of LP38851's ADJ pin.

For your curiosity, our customer is considering the abnormal situation that the ADJ pin is short to Vin or Vbias on PCB as you commented.

Best Regards,

Sonoki
