TPS40305 protection operation

Tsukui Yusuke

Guru 21930 points

Other Parts Discussed in Thread: TPS40305

Hi Team,

I’d Iike to ask about TPS40305 protection.
Our customer is going to use TPS40305 in attaced conditions .

I suspect the short-circuit protection or thermal shutdown.
Is there a protection operation EN is Low of TPS40305 ?
Please tell me the cause of the operation, such as the waveform.

Best Regards,
Yusuke/Japan Disty

over 10 years ago

0 JohnTucker over 10 years ago

TI__Guru**** 191445 points

I do not understand your question. Can you clarify it?

0 Tsukui Yusuke over 10 years ago in reply to JohnTucker

Guru 21930 points

Hi John,

Thank you for the reply.
I apologize for any confusion.

Consumer do not have to turn OFF the EN.
But,TPS40305 is temporarily OFF the EN during operation.

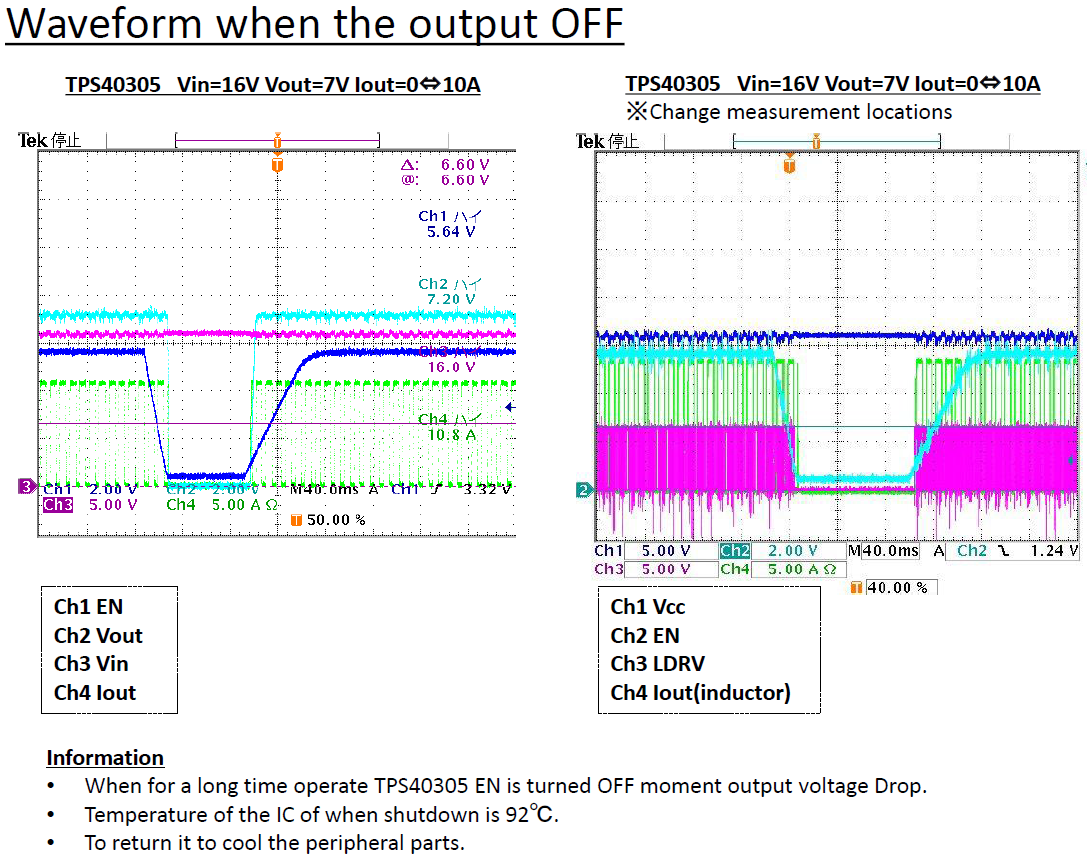

It is a waveform with attached operation waveform at that time.
Consumer is looking for a cause to TPS40305 is off the EN.

I was suspicious of thermal shutdown.
But temperature of the package was Tc top=90℃.

Best Regards,
Yusuke/Japan Disty

0 JohnTucker over 10 years ago in reply to Tsukui Yusuke

TI__Guru**** 191445 points

So you are saying that the user is not actively controlling EN? The TPS40305 EN is going low on its own, correct?

0 JohnTucker over 10 years ago in reply to JohnTucker

TI__Guru**** 191445 points

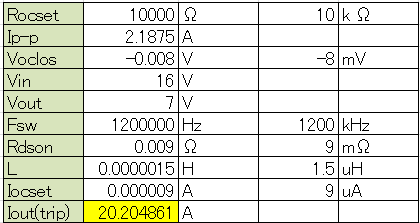

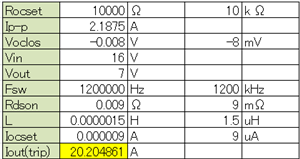

It could be OCP. It is hiccup mode and you have a very high p-p inductor ripple current.

0 Tsukui Yusuke over 10 years ago in reply to JohnTucker

Guru 21930 points

Hi John,

Thank you for the reply.
I have confirmed the possibility of OCP.

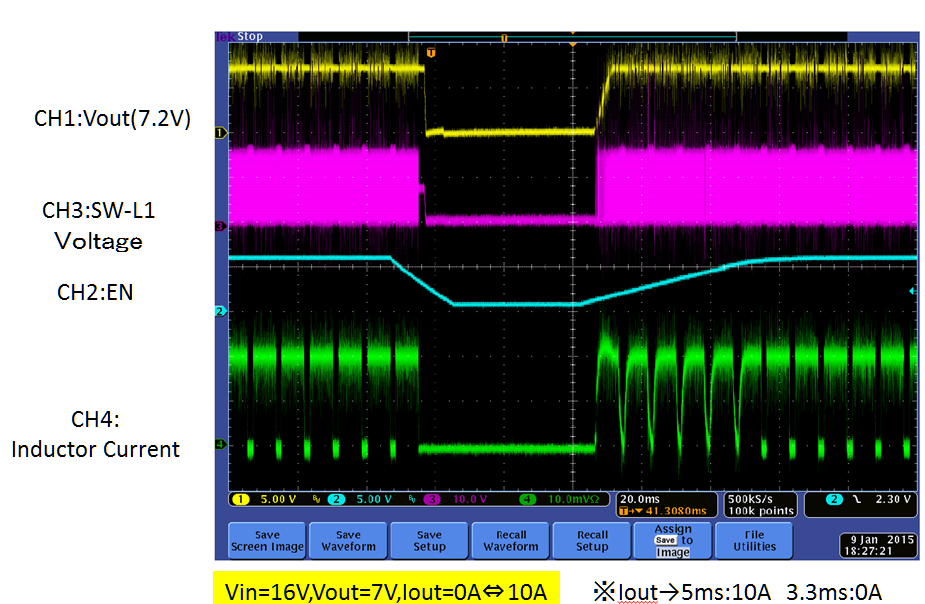

Please check the following attached image.

Is this device will turn OFF the EN at the time of the thermal shutdown?
Customer want to know or even become such a waveform when the thermal shutdown.

Best Regards,
Yusuke/Japan Disty
