TPS51219 layout

Tsukui Yusuke

Guru 21930 points

Other Parts Discussed in Thread: TPS51219

Hi Team,

I’d Iike to ask about TPS51219 layout.
Data sheet of the TPS51219 is joined the GND and AGND.

However,EVM application notes of layout are separate GND and PGND and power pad.

Which is your recommendation?
I would like to connect the GND and PGND and PowerPad for heat dissipation.

Best Regards,
Yusuke/Japan Disty

over 10 years ago

0 Tsukui Yusuke over 10 years ago

Guru 21930 points

Hi Team, Can I get the information ?
If you need more information or if I should clarify my comment , please let me know.
Best Regards,Yusuke　/ Japan Disty

0 Arm Wang over 10 years ago

TI__Prodigy 110 points

Hello Yusuke-san,

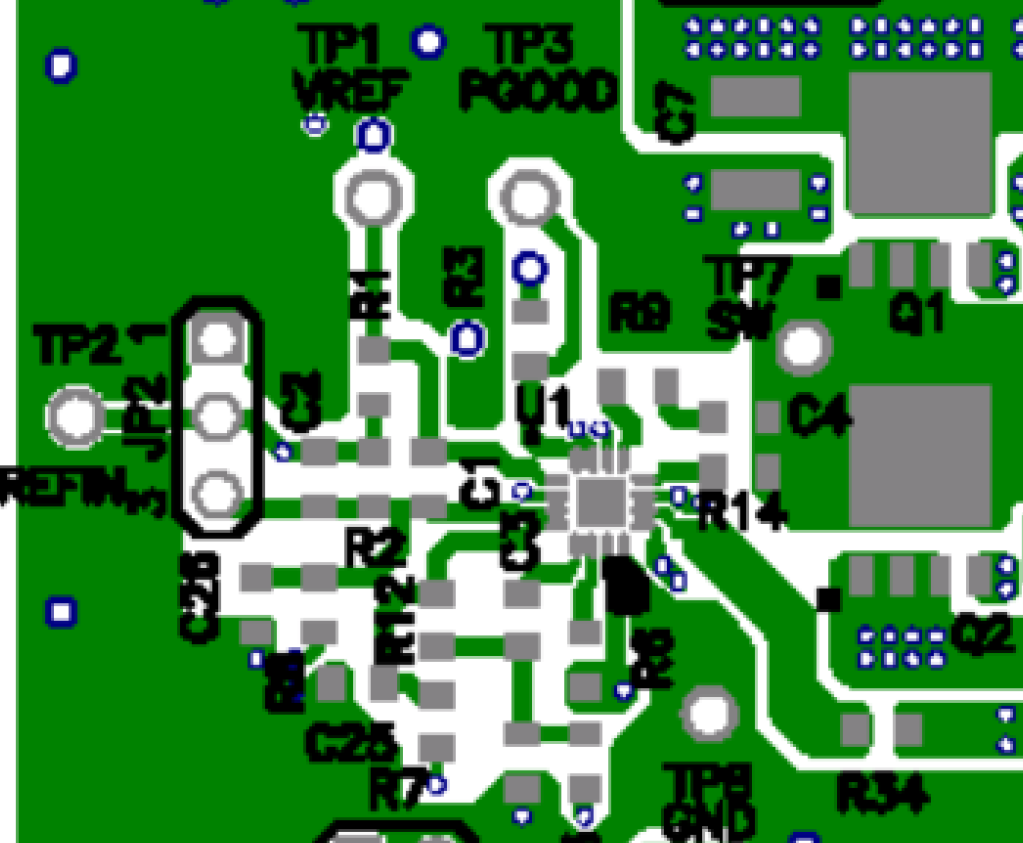

Please follow the EVM "User Guide" of "PGND", "GND" and "PowerPad" connection.
BR,Arm

0 Tsukui Yusuke over 10 years ago in reply to Arm Wang

Guru 21930 points

Hi Arm,Thank you for your a reply.
Is it "PGND" and "GND" and "PowerPad" to separate the mast?
The point of this question is that
Is it OK to connect GND,PGND and PowerPad all together for the purpose of heat dissipation?
Best Regards,Yusuke　/ Japan Disty

0 Arm Wang over 10 years ago in reply to Tsukui Yusuke

TI__Prodigy 110 points

Hello Yusuke-san,

Some for your reference:

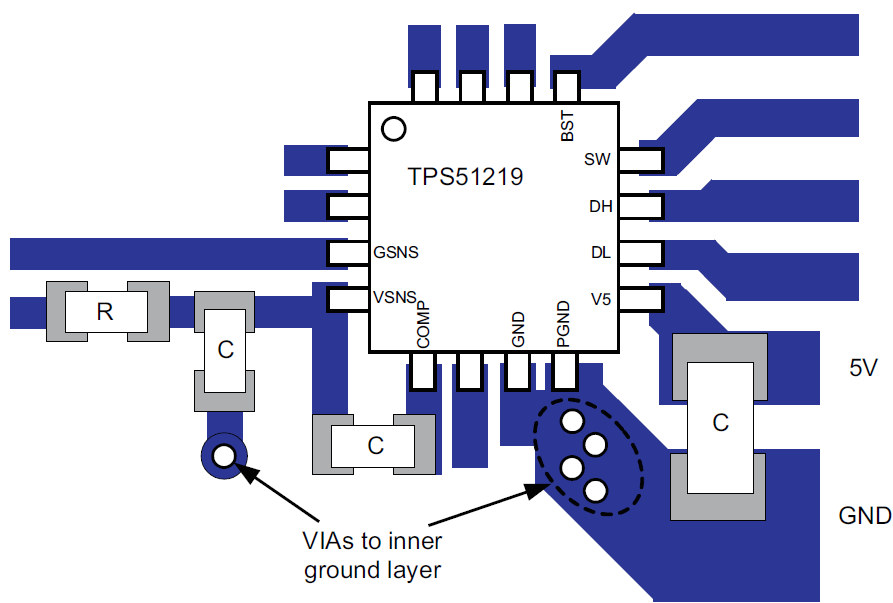

Connect GND(Pin7) and PGND(Pin8) directly on the top layer, and connect to internal layer ground plane by via;

Connect the IC ThermalPad to the internal layer ground plane by via;

BR,

Arm Wang
