PMP6943 transformer spec

Stone Zeng

Other Parts Discussed in Thread: TPS40210

My customer want use TPS40210 reference design PMP6943, as the transformer DCT24LQ-U0XH004 is customized part, cold anybody advise how to get the transformer spec.

over 10 years ago

0 Anthony F over 10 years ago

TI__Mastermind 35165 points

Hi Stone,

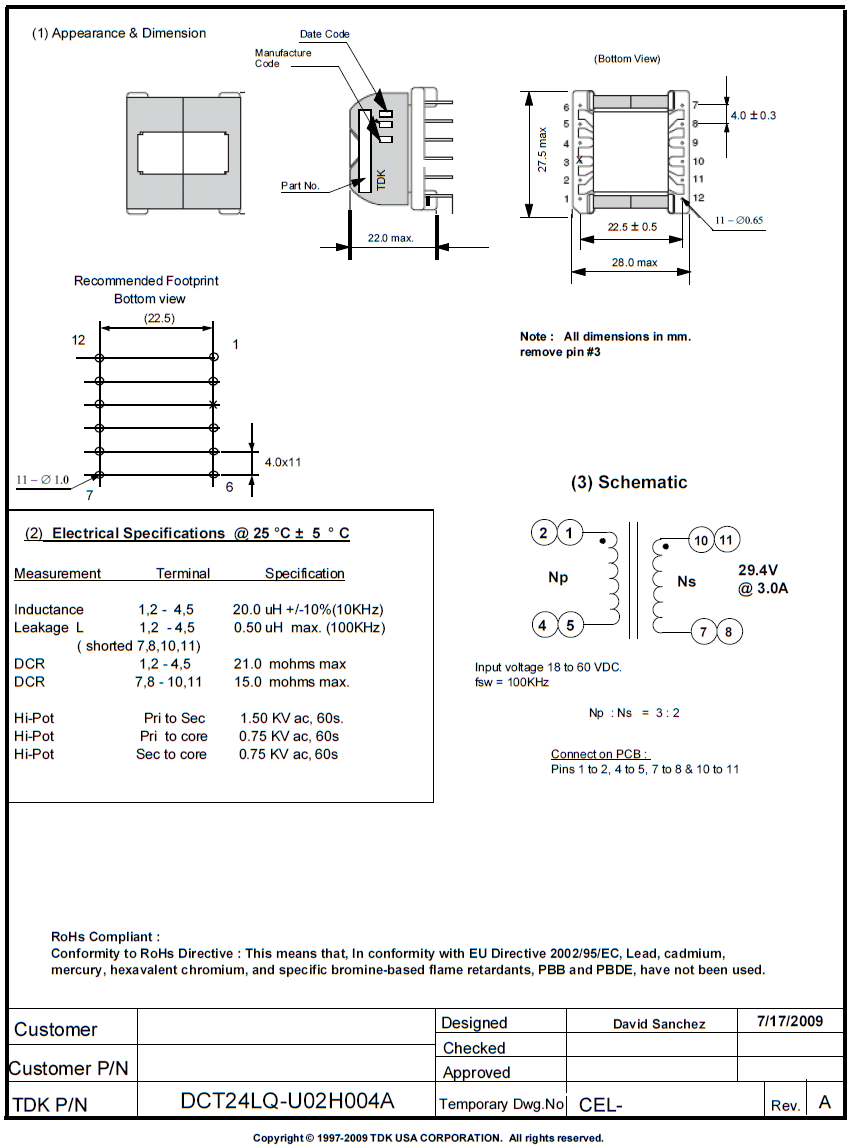

I have put the spec in the image below.

Best Regards,
Anthony

0 Stone Zeng over 10 years ago in reply to Anthony F

TI__Prodigy 700 points

Thanks, Anthony,

Could you let me know which magnetic core is using?

0 Anthony F over 10 years ago in reply to Stone Zeng

TI__Mastermind 35165 points

Hi Stone,

The specification I posted is the only information I have on this transformer. For these details I suggest trying to contact TDK who made the transformer.

Best Regards,
Anthony

0 Charles Masoomian over 10 years ago in reply to Anthony F

Prodigy 15 points

That's great. I may use the PMP7279 Reference Design, which uses the sam tranformer to bread board a similar design.

Does TI have a list of custom flyback transformers recomended to use with their reference designs?

The TDK Web Sites doesn't seem to post it.
