the recommended circuit of LM317DCYR

Hidetoshi Matsunami

Expert 2750 points

Other Parts Discussed in Thread: LM317, TL2575HV-ADJ

Hello Team,

Could you tell me the recommended circuit of LM317 with 40Vin, 24Vout / 0.5A?

I can't make a judge from sample circuit of data sheet.

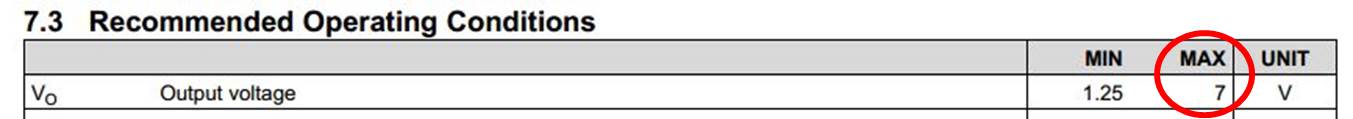

Also my opinion is Vout(max) = 37V.

Is my understanding correct?

Best Regards,

Hidetoshi Matsunami

over 10 years ago

0 Ron Michallick over 10 years ago

TI__Guru**** 164796 points

Hidetoshi-san.

Yes 37V; there is a typo error in the recnet data sheet formatting update.

My first thought is that the power lost is (40V - 24V) * 0.5A = 18 watts.
It will be very difficult to get that much heat out of the LM317.

Perhaps the TL2575HV-ADJ would be a more efficient and easy to implement choice.
www.ti.com/.../TL2575HV-ADJ;tisearch=Search-EN-Everything

0 Hidetoshi Matsunami over 10 years ago in reply to Ron Michallick

Expert 2750 points

Hello Ron,

Thank you for your quick support.

Best Regards,

Hidetoshi Matsunami
