BQ25504 PCB Design Files

Mirza Rasheduzzaman

Other Parts Discussed in Thread: BQ25504

Hello,

I have the gerber files for the BQ25504. I was wondering if it would be possible to get the actual PCB layout design files. I would be really grateful if anyone can help with this. Thanks a lot.

Best Regards,

Mirza

over 10 years ago

Mirza Rasheduzzaman over 10 years ago

Prodigy 85 points

I just wanted to add that using the Gerber files, the ground plane looks like it is made of a lot of individual lines instead of solid copper area and the PCB manufacturer said it might not be good for fabrication and later on for application. I would really appreciate if you could please give me the PCB layout files. Thanks.

Jing Zou over 10 years ago

TI__Mastermind 20570 points

We do not recommend using the BQ25504EVM layout which is out of date. I recommend you look at the datasheet page 26 for pcb layout example.

Mirza Rasheduzzaman over 10 years ago in reply to Jing Zou

Prodigy 85 points

HI Jing,

Thanks a lot for your reply. Would it be possible to get the Gerber files for the new layout? I would really appreciate it. Thanks a lot.

Best Regards,

Mirza

Jing Zou over 10 years ago in reply to Mirza Rasheduzzaman

TI__Mastermind 20570 points

Unfortunately, we do not have a newer version of the layout for bq25504EVM.

Mirza Rasheduzzaman over 10 years ago in reply to Jing Zou

Prodigy 85 points

Thanks for the info, Jing.

Mirza Rasheduzzaman over 10 years ago in reply to Mirza Rasheduzzaman

Prodigy 85 points

Hi Jing,

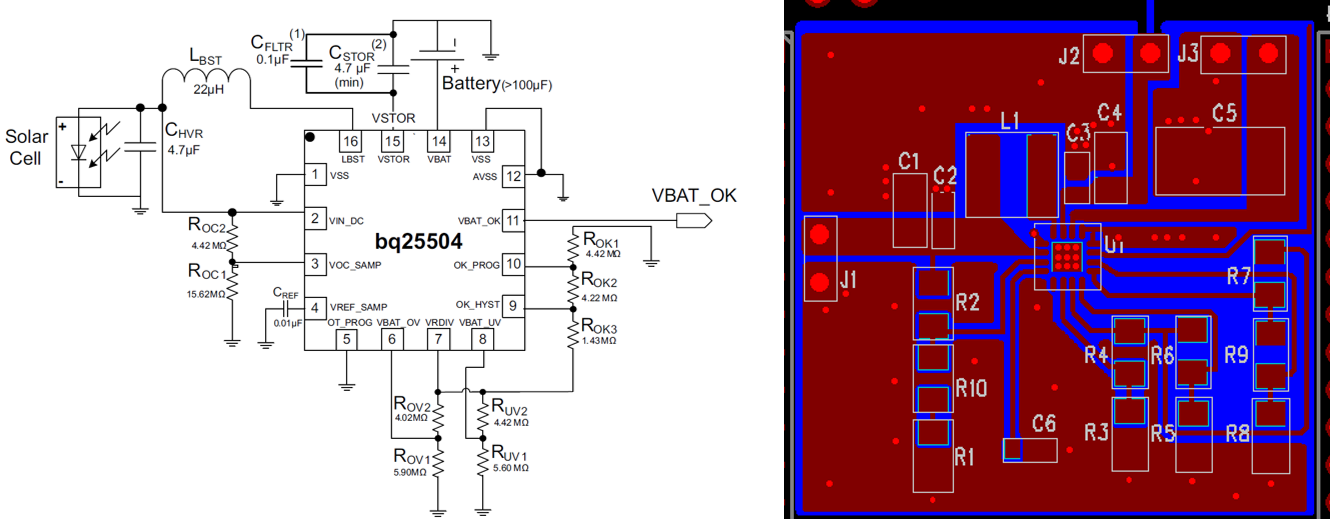

Based on the solar application circuit, I have finished the design and layout. I was wondering if it would be possible to get some comments on the layout. Thanks.

R1+R10 = ROC1, R2 = ROC2, R3 =ROV1, R4=ROV2, R5=RUV1, R6=RUV2, R7=ROK1, R9=ROK2, R8=ROK3, C6=CREF. rest are the output and input capacitors.

Jing Zou over 10 years ago in reply to Mirza Rasheduzzaman

TI__Mastermind 20570 points

The layout looks good. I would recommend to move C1, C2 closer to the IC.

Mirza Rasheduzzaman over 10 years ago in reply to Jing Zou

Prodigy 85 points

thanks for you advice Jing. cheers!
