Need TLV61220 Spice model

Robert Chen

Mastermind 9115 points

Other Parts Discussed in Thread: TLV61220, TPS61220

Hi, All Experts:

I can't find the TLV61220 Spice model from TI website.

Does anyone have the model file? Or which TI device model is best close to TLV61220?

Thanks a lot.

over 10 years ago

0 Jasper Li over 10 years ago

TI__Mastermind 46905 points

Please use TPS61220 instead. the behavior model of TLV61220 and TPS61220 is the same. the latter on have better accuracy in the electrical characteristics .

thanks
Jasper Li

0 Robert Chen over 10 years ago in reply to Jasper Li

Mastermind 9115 points

Jasper, thanks a lot for your help.

0 Jonathan9420 over 8 years ago in reply to Jasper Li

Expert 2056 points

What's the difference between TPS61220 and TLV61220?

How do you get the SPICE model? The product page says to download it from WEBENCH? But WEBENCH doesn't include the TLV61220 or TPS61220.

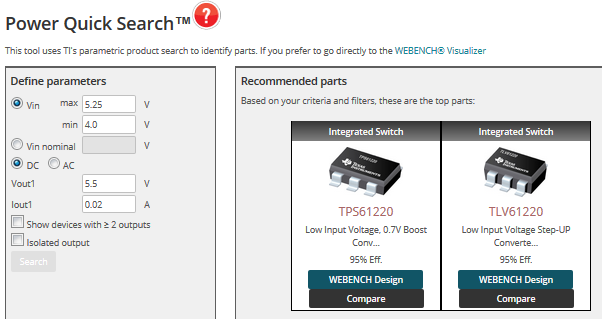

They are recommended by power quick search:

But when I click "WEBENCH Design" they are not listed.

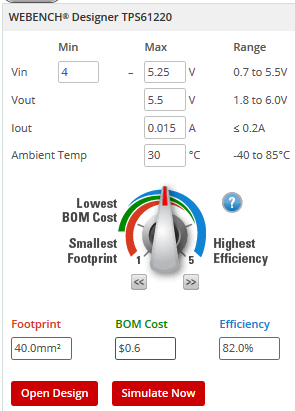

If I launch WEBENCH from the product page itself, it seems like my values are ok:

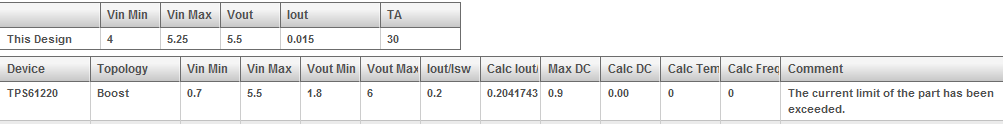

but then it says it can't work because of current limit:

0 Jasper Li over 8 years ago in reply to Jonathan9420

TI__Mastermind 46905 points

hi Jonathan
could you start a new post for the request of the spice model in webench design forum? "e2e.ti.com/.../"

the main difference of TLV61220 and TPS61220 is the package and the electrical characteristics tolerance, such as the current limit.

0 Jonathan9420 over 8 years ago in reply to Jasper Li

Expert 2056 points

Switch current limit is 400 mA for both chips

0 Jasper Li over 8 years ago in reply to Jonathan9420

TI__Mastermind 46905 points

400ma is the typical value. you should look at the minimum and maximum value.
