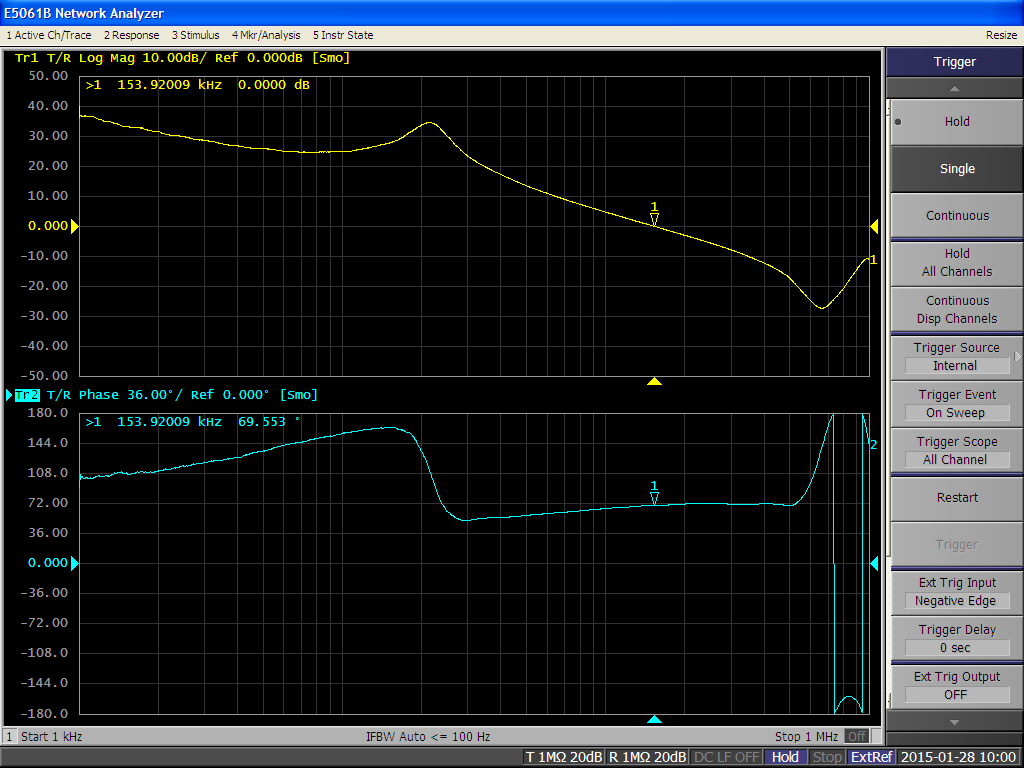

I want to plot the Bode diagram for my power supply based on TPS62095.
I'm using Cadance PSPice 16.
I'm using TPS62095 model from http://www.ti.com/lit/zip/slvma88 in Steady state.
I'm using standard schematics from link above with some little change in passive components nominal according to my schematics. But without these changes result is the same - I got uncorrected results when I try to plot Bode diagram for closed loop with AC source in feedback.
When I try to start Transient analysis I got uncorrected results too.
I think it's happens because dependence of error amplifier feedback ratio from frequency is not present in TPS62095 model.
I need the Bode diagram for closed loop DC/DC source.
Can you get me an example for TPS62095?
