TPS65132W Iout setting

tateo yamashiro

Guru 10890 points

Other Parts Discussed in Thread: TPS65132

Hi,

My customer has question about TPS65132W.
Could you tell me about questoin?

[Question]
My customer want 80mA capability. What would you suggest we do?

- Customer request -
Vpos=5.4V
Ips=80mA
Vneg=-5.4V
Ineg=80mA

In datasheet, TPS65132W default Iout_max(Ineg) is 80mA. This device can change Iout_max capability at APPS bit.

APPS bit is 0: Smartphone mode(Ineg_max=40mA)
APPS bit is 1: Tablet mode(Ineg_max=80mA)

What is TPS65132W default APPS bit?

Best Regards,

tateo

over 10 years ago

0 Ilona over 10 years ago

TI__Expert 8010 points

Hi tateo,

Figure 20 is the APPS-DISP-DISN Register 0x03. The default register Value for this is 0x03, which means that DISN=1, DISP=1 and APPS=0.

So if you want to set this to tablet mode you have to set this register to 0x43.

Hope this was helpful.

Best Regards,

Ilona

0 tateo yamashiro over 10 years ago in reply to Ilona

Guru 10890 points

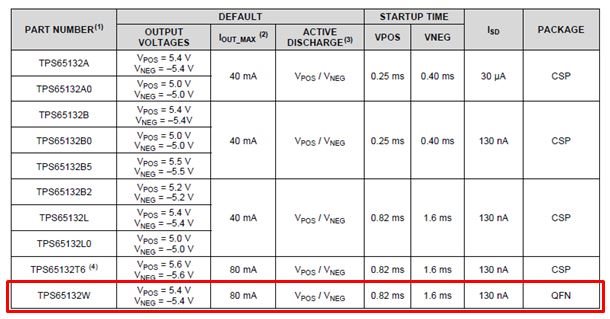

Thank you for your reply. We saw Device Comparison table in datasheet. TPS65132W default Iout_max is 80mA. What is mean? My customer is thinking TPS65132W default APPS-DISP-DISN Register is 0x43.

Best Regards,

tateo

0 Ilona over 10 years ago in reply to tateo yamashiro

TI__Expert 8010 points

Yes you are correct default Register Value in APPS-DISP-DISN Register is 0x43, there is a mistake in the datasheet on this point.
Thanks for this Notice!
