LM5122 Sense Resistor Placement

Paul Goedeke

Other Parts Discussed in Thread: LM5122

Hello!

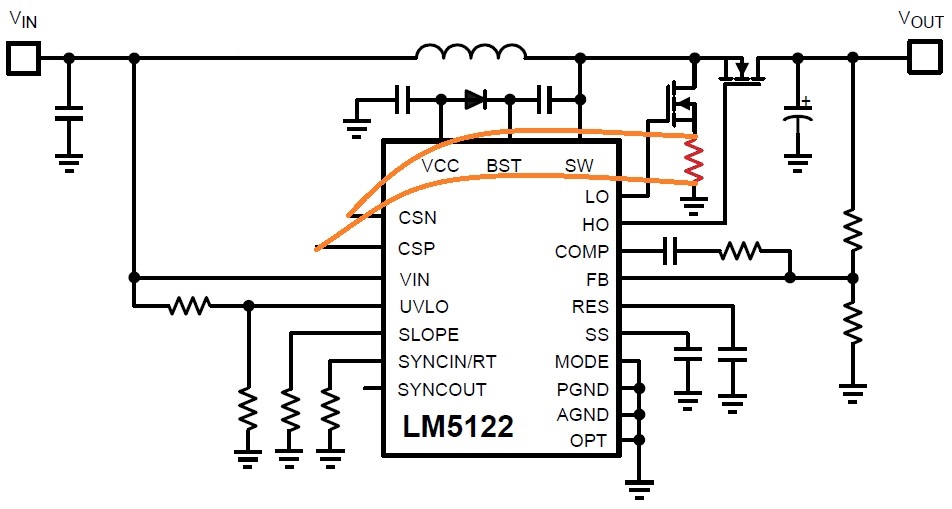

The LM5122 datasheet doesn't specifically call out where the sense resistor is allowed (or not allowed) to be placed. For our design, it would be great to have the sense resistor (marked in red) to be placed on the low switch of the boost converter. Are there any issues with doing this?

Thanks!!

Paul

over 9 years ago

0 EricLee over 9 years ago

TI__Guru 58371 points

Hi Paul

It is mentioned in the datasheet that the minimum common mode range of the current sense amplifier is 3V. You cannot locate the current sense resistor at the low-side of the MOSFET.

Regards,
EL

0 Paul Goedeke over 9 years ago in reply to EricLee

TI__Mastermind 30600 points

Thank you Eric, I appreciate the help!
