θja of LM317M

Masami Michino

Other Parts Discussed in Thread: LM317M, LM317

Dear, All

It is a question about the thermal resistance of LM317M.
In DCY PKG of this IC, thermal resistance is written to the datasheet, but KTP PKG and KUV PKG is not written it.
Please tell me θja of KUV PKG.

Thanks, Masami M.

over 9 years ago

0 Antony Pierre Carvajales over 9 years ago

TI__Intellectual 1910 points

Hi Masami,

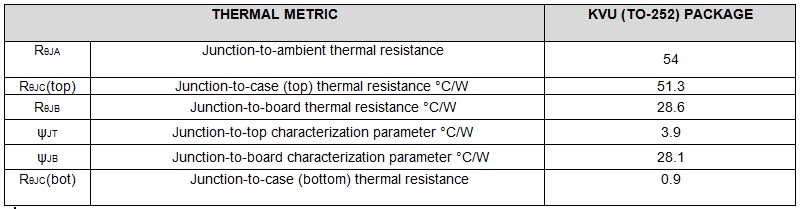

thermal resistance for LM317-KVU package:

0 Michael J Schultis over 9 years ago in reply to Antony Pierre Carvajales

TI__Mastermind 24985 points

Hello Masami-san,

The data above is for the LM317 KVU package not the LM317M, but I have the below data for the LM317MKVURG3 device:

ThetaJA = 56.9 C/W
ThetaJC (top) = 36.1 C/W
ThetaJC (bottom) = 1.8 C/W
ThetaJB = 29.3 C/W
PsiJT = 3.8 C/W
PsiJB = 28.8 C/W

Best,
Michael

0 Masami Michino over 9 years ago in reply to Antony Pierre Carvajales

Genius 5070 points

Hi Antony,

Thank you for your reply.

Thanks, Masami M.

0 Masami Michino over 9 years ago in reply to Michael J Schultis

Genius 5070 points

Hi Michael,

Thank you for your reply.
I answer it to the customer.

Thanks, Masami M.
