TPS61220 / 1ch WLED driver

K.Yaita

Other Parts Discussed in Thread: TPS61220, TPS61120, TPS61090, TPS61070

Hi Team,

My customer is looking for 1ch WLED driver for portable application.
The requirement is the following.
--------------------------------------------
- input voltage: 3.4～4.5V
- LED current: 15mA (MAX)
- function: ON/OFF only
--------------------------------------------

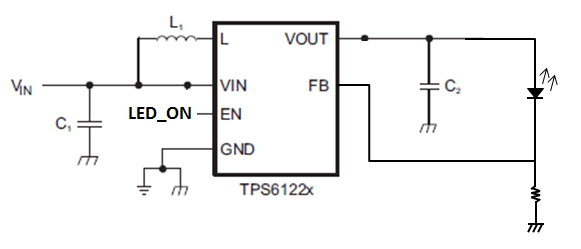

Can I suggest TPS61220 with the following schematic?
Is there any concern about the schematic?

Best Regards,
Yaita / Japan disty

over 9 years ago

0 Gene Lu over 9 years ago

TI__Intellectual 1305 points

Hi Yaita,
According to the schematic, it's TPS6122x, not TPS61120? Right?

BR,
Gene

0 Jasper Li over 9 years ago

TI__Mastermind 46905 points

the TPS61220 doesn't have true disconnection function, so the LED may ON even when LED_ON is in logic low.
and the device must operates at boost mode, which means VOUT must be higher than VIN. but I'm not sure the condition could be meet at VIN=4.5V condition.
you can have a look at TPS61070 and refer to the application note "Powering a White LED Flashlight With the TPS61090". the schematic in the application note may help to solve the problem.

0 K.Yaita over 9 years ago in reply to Gene Lu

Guru 29720 points

Hi Gene-san,

I apologize for typo..
Yes, TPS61220 is correct.
(I modified previous title.)

Best Regards,
Yaita

0 K.Yaita over 9 years ago in reply to K.Yaita

Guru 29720 points

Hi Jasper-san,

Thank you for your support.
I will check your application note.

Best Regards,
Yaita
