TPS6123x / zero duty cycle mode

S.Satoshi

Other Parts Discussed in Thread: TPS61230, TPS61230A

Hi,

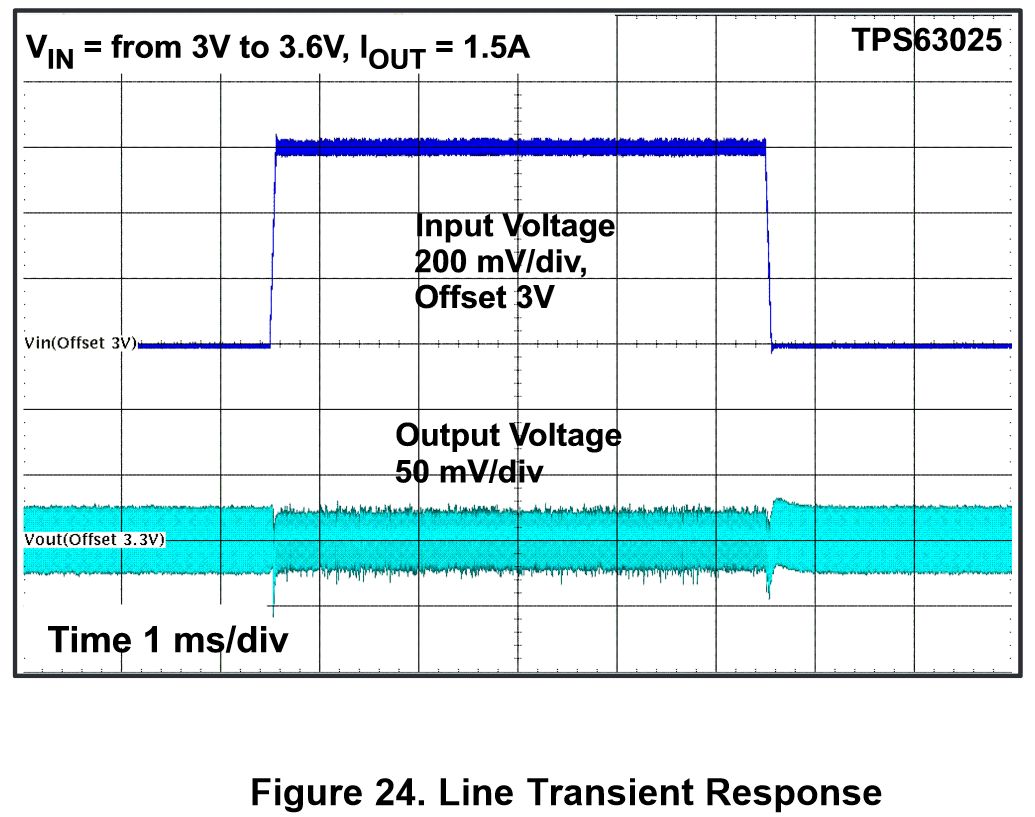

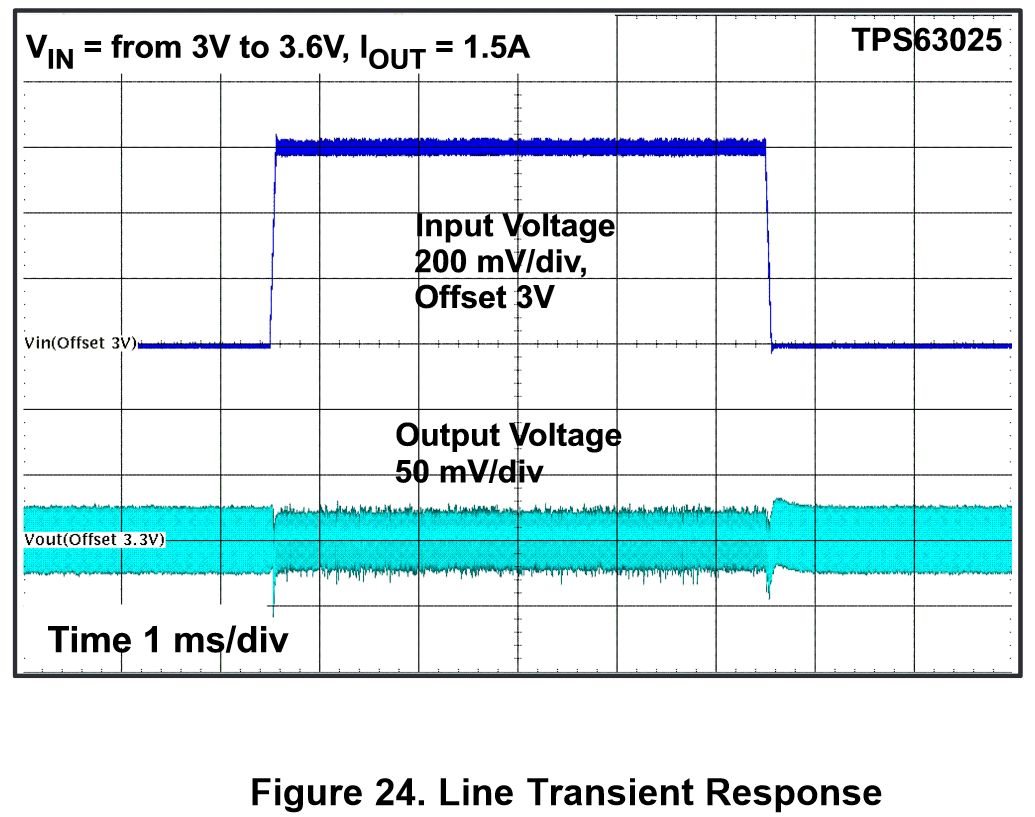

I'm interested in zero duty cycle mode in TPS6123x but there is no waveform in datasheet. So can you provide example waveform? I'd like to see the transition from boost mode to zero duty cycle mode, and vice versa. The waveform like attached from TPS63025 datasheet will be helpful.

Best Regards,

Sonoki / Japan Disty

over 9 years ago

0 Jasper Li over 9 years ago

TI__Mastermind 46905 points

VIN=2.7~3.8V, VOUT=3.5V, IOUT=400mA

what is application requirement? TPS6128xA may be better device.

0 S.Satoshi over 9 years ago in reply to Jasper Li

Guru 21685 points

Hi Jasper Li,

Thank you for sending waveform. This will be helpful for my customer. TPS6128xA seems good device but my customer need 5V output from 2.5V ~ 5.2V input, and Iout(max) = 1A at 2.5V input.
Do you have other recommended device?

Best Regards,
Sonoki

0 Jasper Li over 9 years ago in reply to S.Satoshi

TI__Mastermind 46905 points

Currently we only have TPS61230. we are also developing TPS61230A, better efficiency and smaller solution size. but the RTM schedule could be a problem.

0 S.Satoshi over 9 years ago in reply to Jasper Li

Guru 21685 points

Hi Jasper Li,

Thank you for introducing TPS61230A. I found it in the internal presentation. I'll ask local sales in TI Japan the RTM schedule.

Best Regards,
Sonoki

0 S.Satoshi over 9 years ago in reply to S.Satoshi

Guru 21685 points

Hi Jasper Li,

Let me ask one more question about zero duty cycle mode. In this mode, the upper input voltage is limited to Vout+0.24V, then whan will be happened when the input will be increased over Vout+0.24V. And what value is 0.24V?

Your comment will be appreciated.

Best Regards,
Sonoki

0 Jasper Li over 9 years ago in reply to S.Satoshi

TI__Mastermind 46905 points

The input voltage is not limited at VOUT+0.24V. the sentence in the datasheet is to describe the zero cycle mode entering condition.
after the device enter zero cycle mode, the VIN is only limited to 5.5V.

0 S.Satoshi over 9 years ago in reply to Jasper Li

Guru 21685 points

Hi Jasper Li,

Ahh, I understood that VOUT+0.24V is the threshold to enter zero duty cycle mode.
Thank you for your response!

Best Regards,
Sonoki
